Nomor Part: 8WH6000-6AG00
Kategori
(Knife) disconnect terminal block

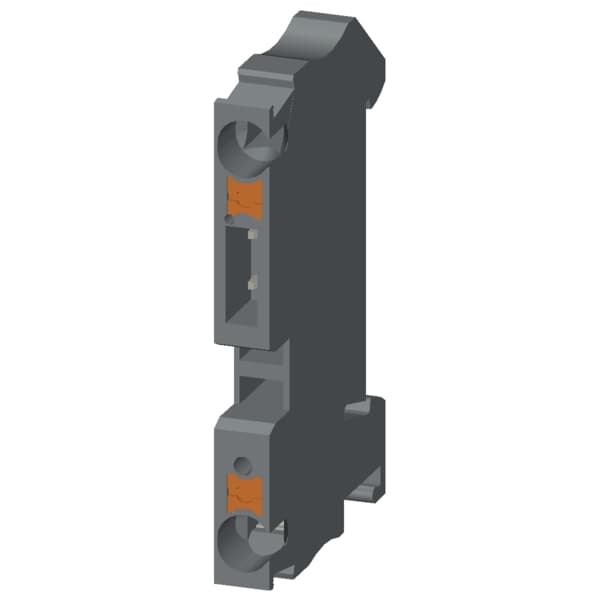

Siemens 8WH6000-6AG00. Terminal, iPo plug-in terminal, isolating terminal, 4 mm², gray.
Spesifikasi
Mechanical
Net Weight10 g

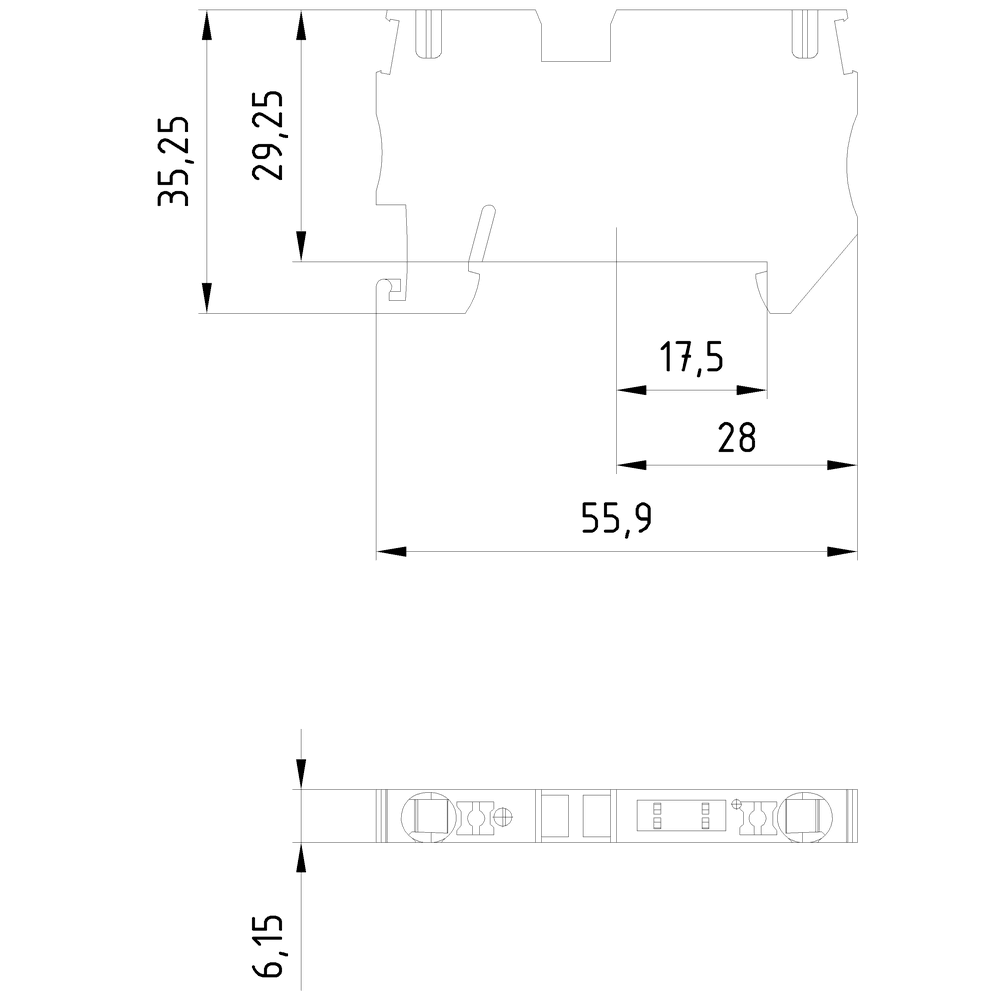

Dimensions
Depth36.5 mm
Other
colorgrey
length54 mm
fastening methodTH35 DIN rail
product brand nameSENTRON
insulation materialthermoplastic
product designationTerminal blocks
type of connection 1plug-in terminal connection
type of connection 2plug-in terminal connection
design of the productiPo isolating terminal
position of the terminaltop
terminal contact spacing6.2 mm
number of terminal levels1
type of lateral separationwithout
operating voltage rated value500 V
material of the insulating bodyOther
operational current rated value20 A
type of longitudinal separationpluggable
height with lowest-profile installation55.93 mm
combustibility class according to UL 94V0
number of terminal points per terminal level2
