Nomor Part: 8WH6000-1GG08
Kategori
Fuse terminal block

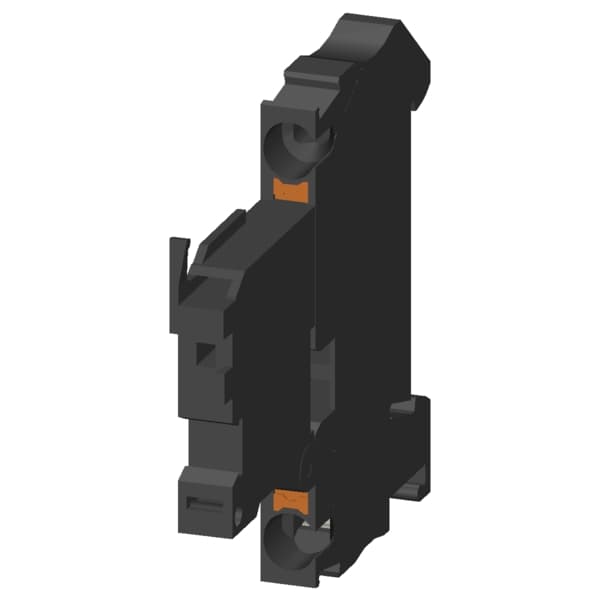

Siemens 8WH6000-1GG08. Terminal, iPo plug-in terminal, fuse terminal for G fuse, 4 mm², black.
Spesifikasi
Mechanical
Net Weight13 g

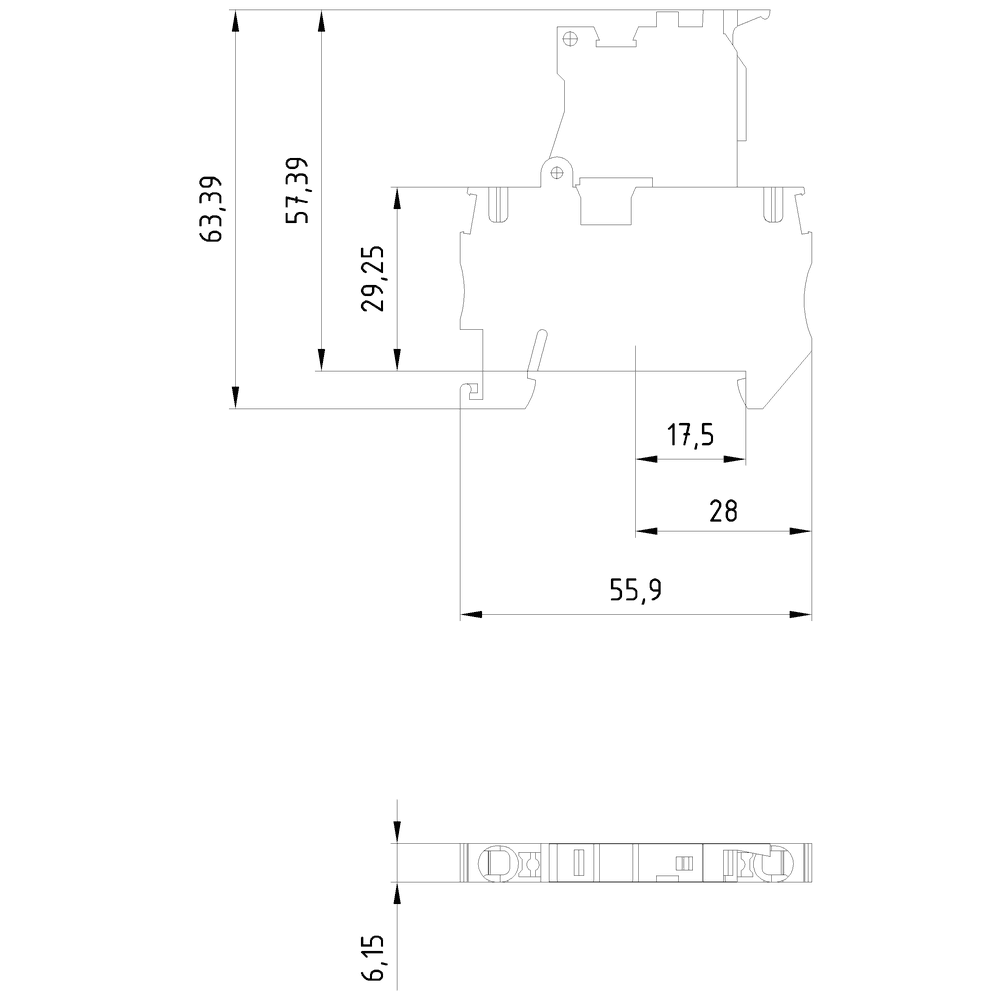

Dimensions
Depth63.38 mm
Other
colorblack
length56 mm
fastening methodDIN rail 35 mm
product brand nameSENTRON
insulation materialthermoplastic
product designationTerminal blocks
type of connection 1plug-in terminal connection
type of connection 2Plug-in terminal connection
design of fuse holderswivel
design of the productiPo fuse terminal
design of the fuse linkglass fuse 5x20 mm
position of the terminaltop
terminal contact spacing6.2 mm
number of terminal levels1
operating voltage rated value500 V
material of the insulating bodyOther
operational current rated value6.3 A
height with lowest-profile installation55.93 mm
combustibility class according to UL 94V0
type of light source as defect indicatorLED
product component required end cover plateYes
type of voltage for supply of the defect indicatorothers
