Aktif
Terminal
Nomor Part: 8WH2003-6AF00
Kategori
(Knife) disconnect terminal block

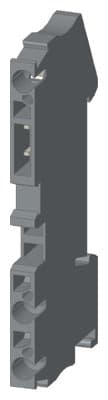

Siemens 8WH2003-6AF00. Terminal, spring-loaded terminal, 3 clamping points, isolating terminal, 2.5 mm², gray.
Spesifikasi
Mechanical
Net Weight9 g

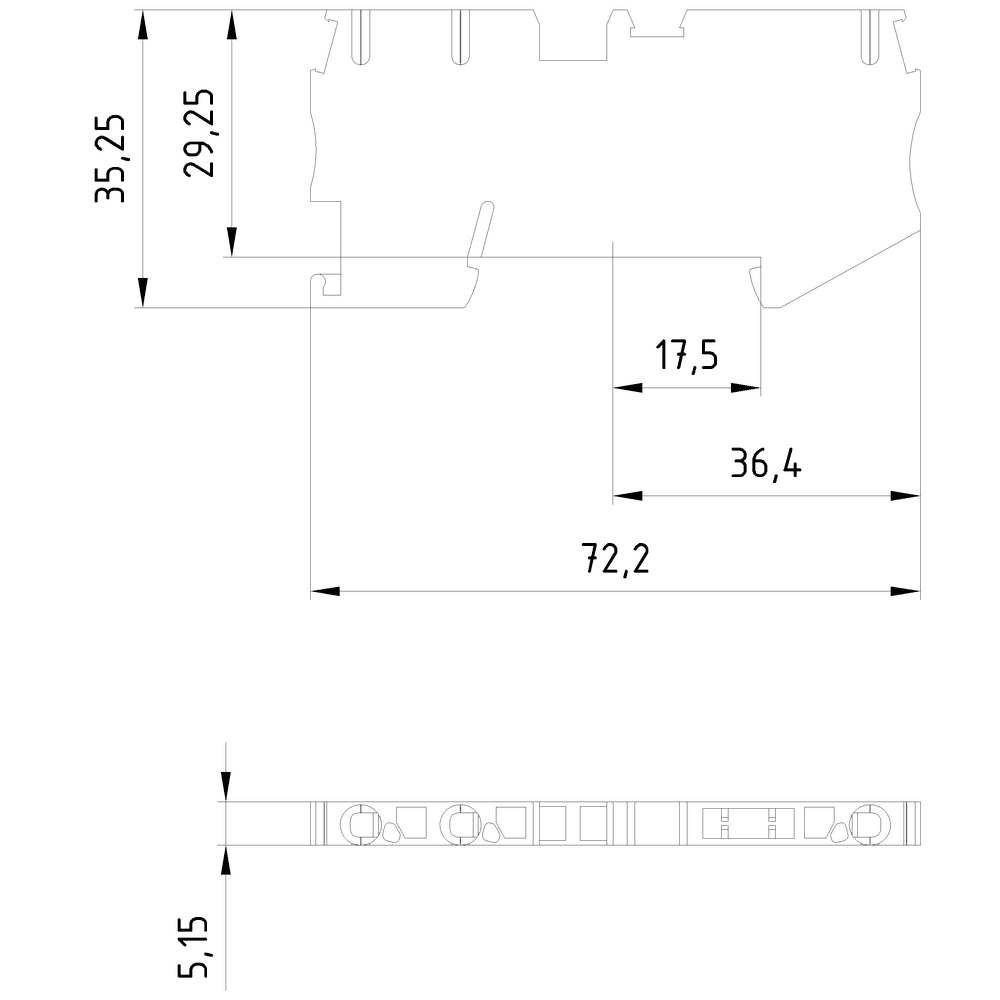

Dimensions
Depth36.5 mm
Other
colorgrey
length72 mm
fastening methodTH35 DIN rail
product brand nameSENTRON
insulation materialPA
product designationTerminal blocks
type of connection 1spring-loaded terminal
type of connection 2spring-loaded terminal
design of the productisolating terminal
position of the terminaltop
terminal contact spacing5.2 mm
number of terminal levels1
type of lateral separationwithout
operating voltage rated value400 V
material of the insulating bodyOther
operational current rated value20 A
type of longitudinal separationothers
height with lowest-profile installation72.23 mm
combustibility class according to UL 94V0
number of terminal points per terminal level3
