Terminal
Nomor Part: 8WH1020-6AC00
Kategori
(Knife) disconnect terminal block

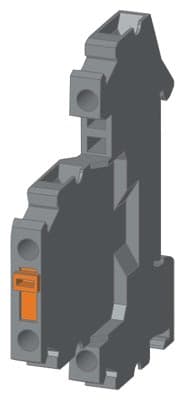

Siemens 8WH1020-6AC00. Terminal, screw terminal, two-tier, isolating terminal, gray.
Spesifikasi
Mechanical
Net Weight21 g

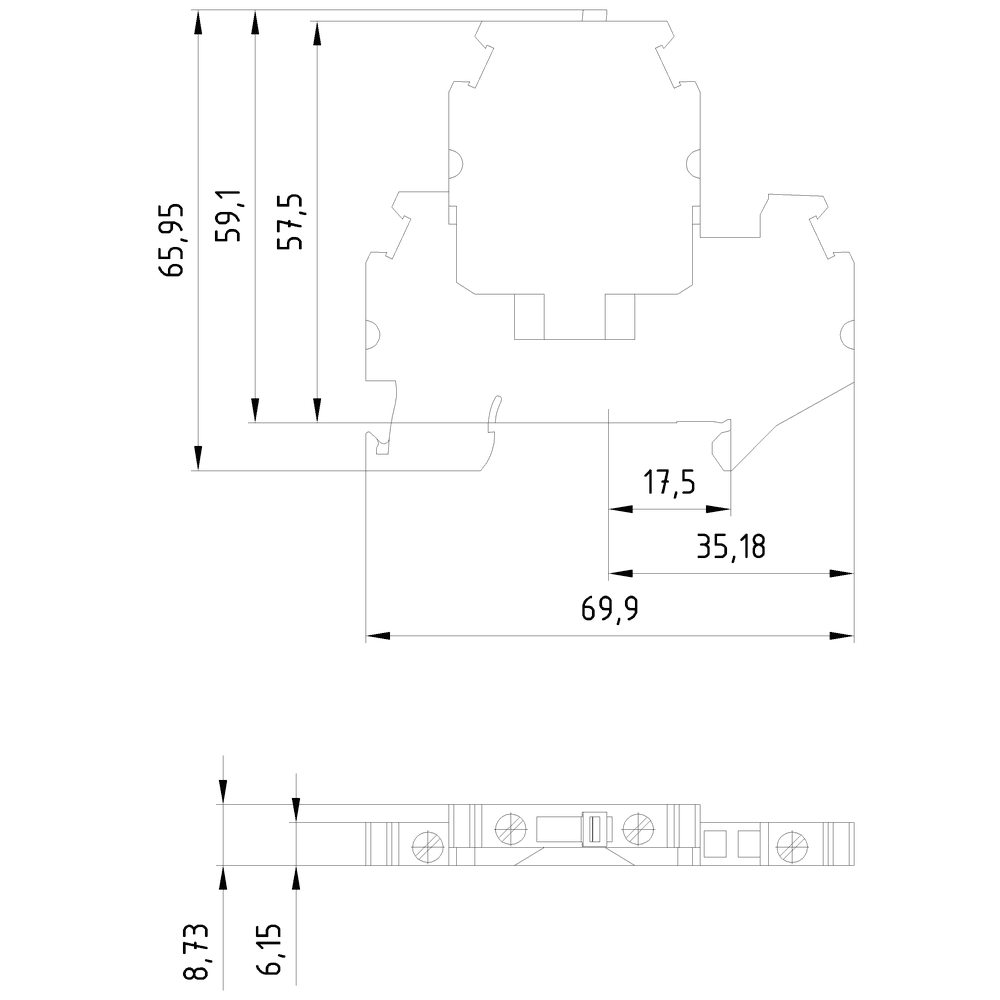

Dimensions
Depth65 mm
Other
colorgrey
length70 mm
fastening methodTH35 DIN rail
product brand nameSENTRON
insulation materialPA
product designationTerminal blocks
type of connection 1screw-type terminal
type of connection 2screw-type terminal
design of the producttwo-tier terminal
position of the terminallateral
terminal contact spacing6 mm
number of terminal levels2
operating voltage rated value500 V
material of the insulating bodyPA
operational current rated value30 A
height with lowest-profile installation69.9 mm
combustibility class according to UL 94V0
number of terminal points per terminal level2
