Nomor Part: 8WH1000-1PH38
Kategori
Fuse terminal block
Siemens 8WH1000-1PH38. Terminal, screw terminal, fuse terminal for inch fuse, with illuminated display, 6 mm², black.
Spesifikasi
Mechanical
Net Weight24 g

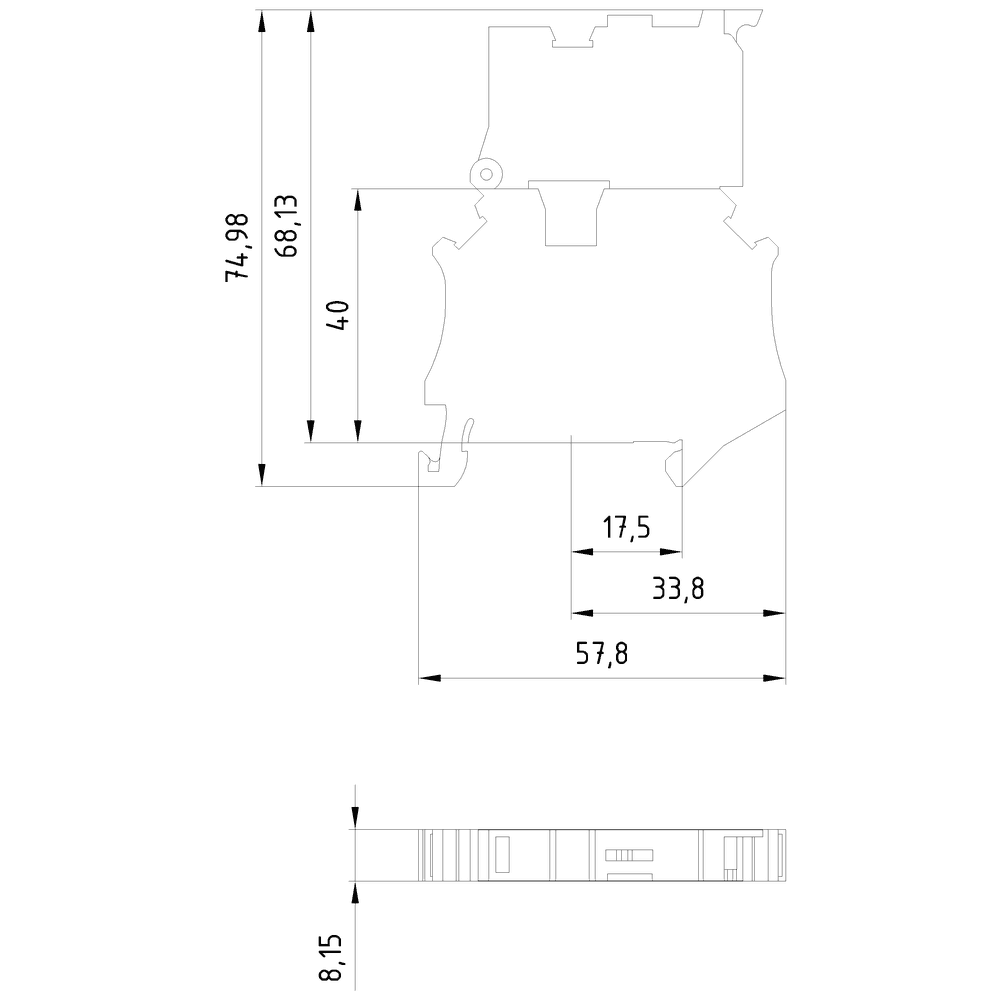

Dimensions
Depth74.98 mm
Other
colorblack
length58 mm
fastening methodTH35 DIN rail
product brand nameSENTRON
insulation materialPA
product designationTerminal blocks
type of connection 1screw-type terminal
type of connection 2screw-type terminal
design of fuse holderswivel
design of the productfuse terminal
position of the terminallateral
terminal contact spacing8.2 mm
number of terminal levels1
operating voltage rated value630 V
material of the insulating bodyPA
operational current rated value10 A
height with lowest-profile installation57.8 mm
combustibility class according to UL 94V0
product component required end cover plateNo
