Aktif
Buzzer element
Nomor Part: 8WD4450-0FA
Kategori
Acoustic module for signal tower
Siemens 8WD4450-0FA. Buzzer element, continuous tone or pulsating, adjustable, 85 dB, black, 230 V AC, diameter 70 mm.
Spesifikasi
Dimensions
Width70 mm
Height72 mm
Other
colorblack
materialPC
loudness level85 ... 85 dB
fastening methodBayonet
product brand nameSIRIUS
product designationBuzzer element
protection class IPIP65
type of acoustic signalcontinuous tone / pulse tone
consumed current maximum25 mA
tone frequency of alternating tone1.75 ... 1.75 kHz
ambient temperature during operation-20 ... +50 °C

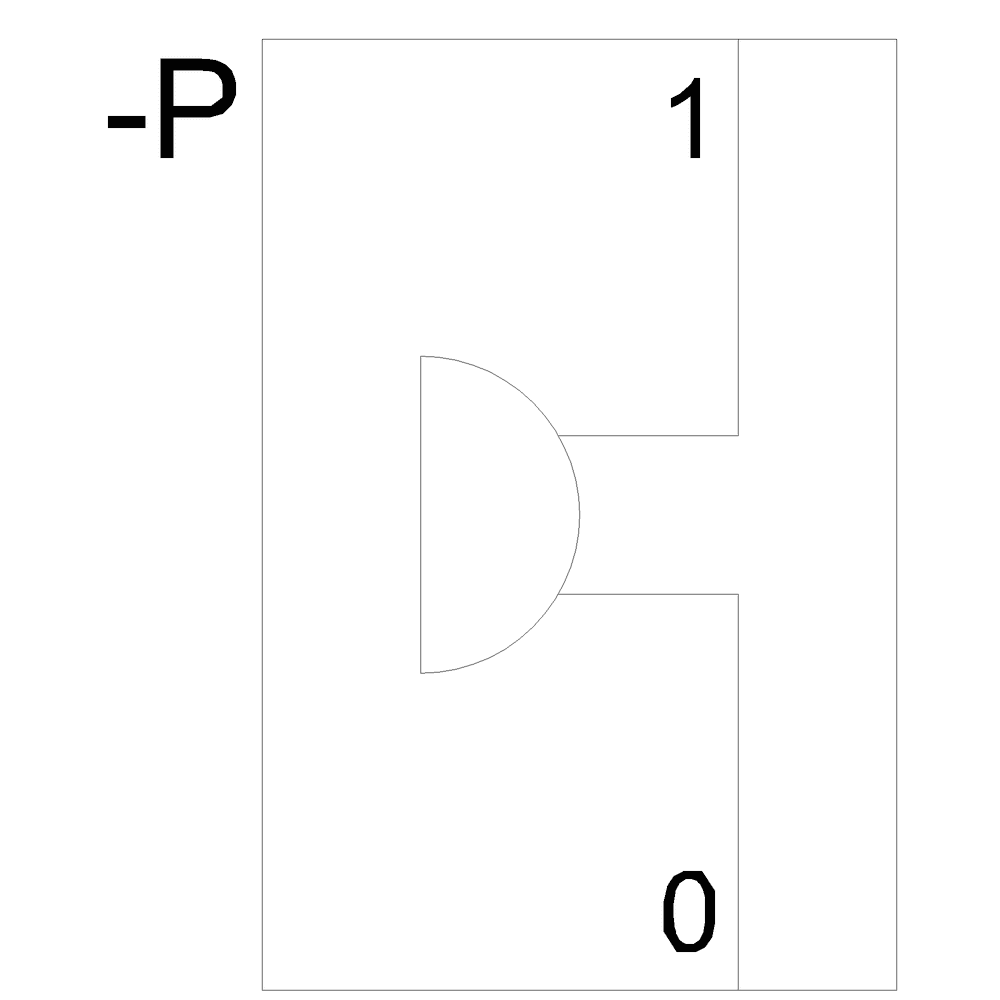

reference code according to EN 61346-2P
service life of acoustic signal device5 000 h
type of voltage of the operating voltageAC
outer diameter of the signal column element70 mm
product function adjustable acoustic signalYes
relative negative tolerance of the operating voltage-10 %
relative positive tolerance of the operating voltage10 %
