Aktif
Bracket for wall mounting
Nomor Part: 8WD4308-0CA
Merek
Kategori
Wall bracket for signal tower
Siemens 8WD4308-0CA. Bracket for wall mounting, for mounting on one side, without foot and pipe, accessory for signaling columns, with diameter 70 mm.
Spesifikasi

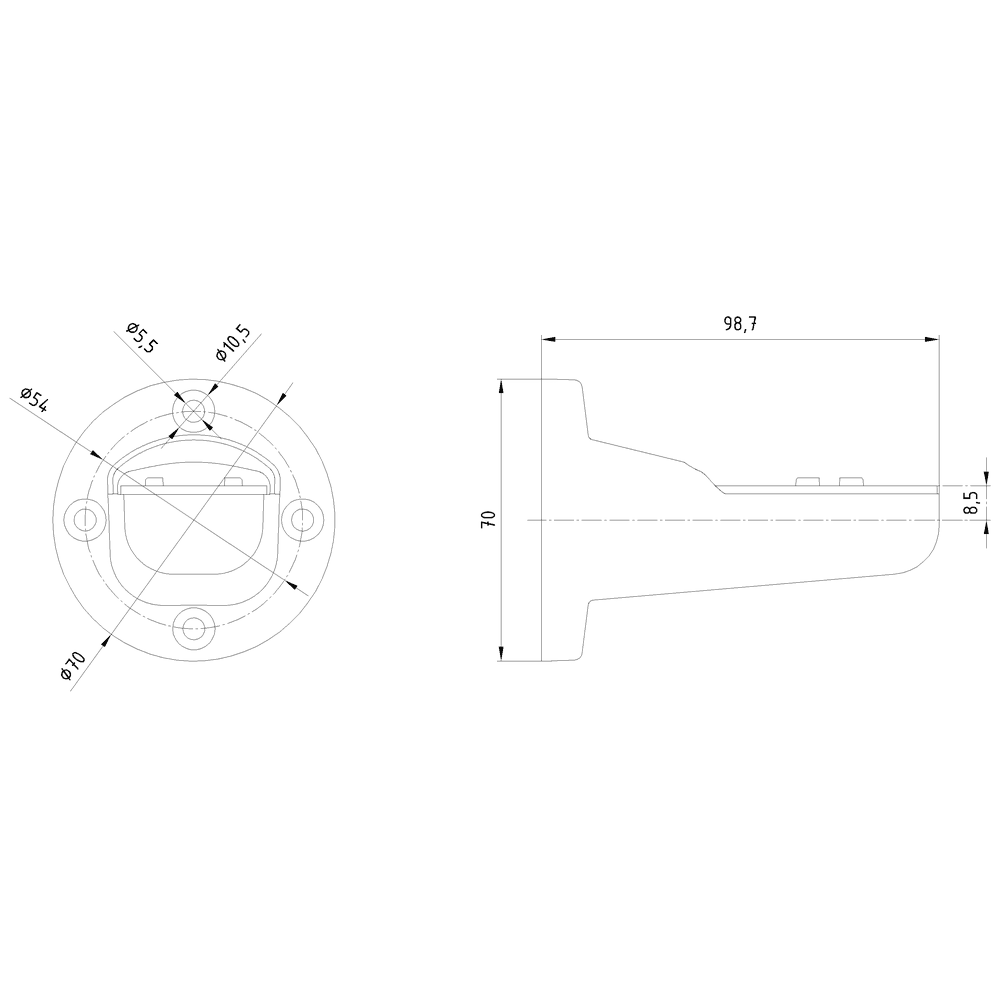

Dimensions
Width70 mm
Depth98.7 mm
Other
colorblack
materialPA
fastening methodwall mounting
product brand nameSIRIUS
product designationBracket
design of the productfor wall mounting, one side
ambient temperature during operation-20 ... +60 °C
reference code according to EN 61346-2U
