Aktif
small compact thermostat NO (cooling) -10 bis +50 °C
Nomor Part: 8MR2170-2KB
Kategori
Thermostat/hygrostat (switchgear cabinet)

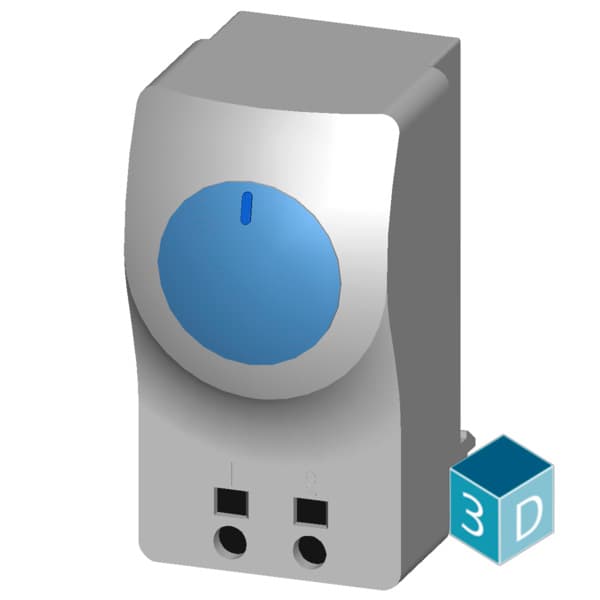

Siemens 8MR2170-2KB. small compact thermostat NO (cooling) -10 bis +50 °C.
Spesifikasi
Mechanical
Net Weight48 g
Dimensions
Width60 mm
Height41 mm
Depth33 mm
Other
mounting typeclip for 35 mm DIN rail
type of sensorThermal bimetal
fastening methodterminal mounting
mounting positionany
product brand nameSIVACON
protection class IPIP20
design of the productNO contact
inrush current typical16 A
material of the enclosureplastic
type of connection technology2-pole terminal 2.5 mm2
design of the switching contactSnap-action contact
operational current rated value10 A
design of the switching functionNO contact
relative humidity reference value90 %
operating voltage at AC rated value250 V
type of voltage of the operating voltageAC
mechanical service life (operating cycles) typical100 000
