Aktif
SIVACON
Nomor Part: 8MF1000-3VS4
Kategori
Enclosure/cabinet (empty)

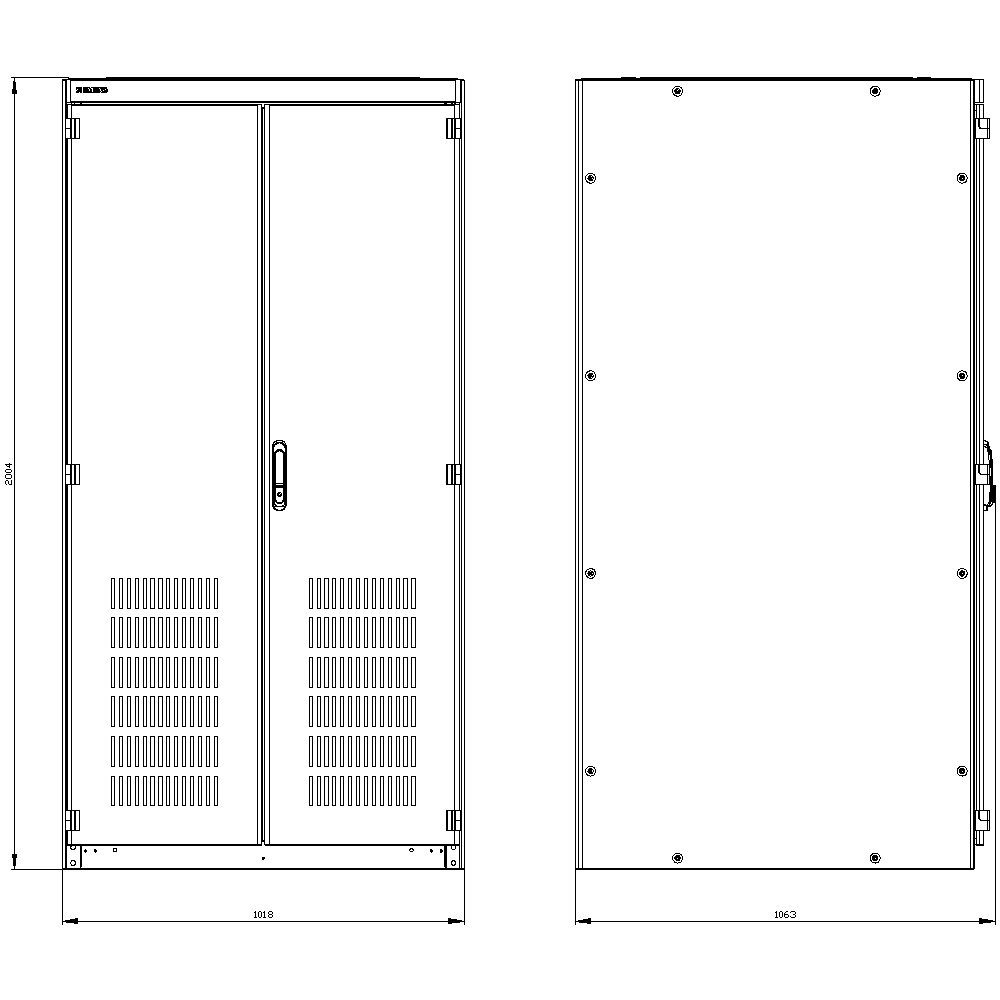

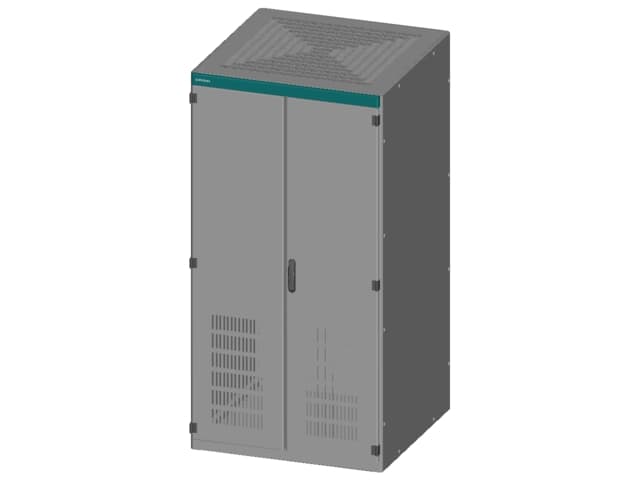

Siemens 8MF1000-3VS4. SIVACON, Control panel Empty enclosure, according to IEC 62208, with ventilation openings, IP20, H: 2000 mm, W: 1000 mm, T: 1000 mm.
Spesifikasi
Mechanical
Net Weight223.32 kg
Dimensions
Width1 000 mm
Height2 000 mm
Depth1 000 mm
Other
colorlight grey
materialsteel
number of doors2
RAL color number7 035
product brand nameSIVACON
product designationEmpty control cabinet enclosure
protection class IPIP20
design of the productaccording to IEC 62208
design of the surfacepowder-coated
RAL color number (similar)7 035
number of locking devices0
design of the product EMC versionNo
operating resource protection classSafety class 1
suitability for use for outside useNo
suitability for integration flush mountingNo
suitability for installation for metric dimensionsYes
suitability for integration surface-mounted installationYes
product feature of the enclosure housing can be lined upNo
