Aktif
ALPHA 400 DIN quick assembly kit for modular installation devices tier spacing 125 mm 2 units N/PE-plug-in terminal H=1200
Nomor Part: 8GK4003-8KK12
Merek
Kategori
Panel for distribution board

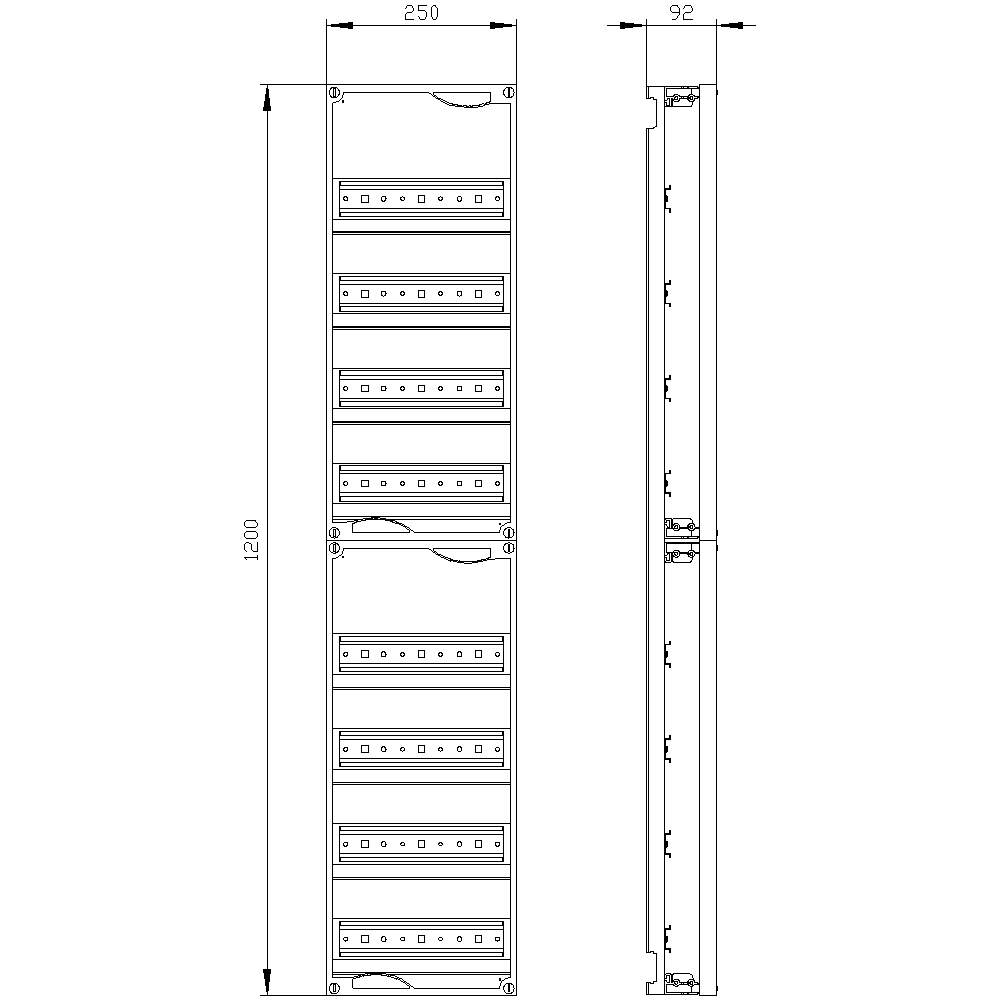

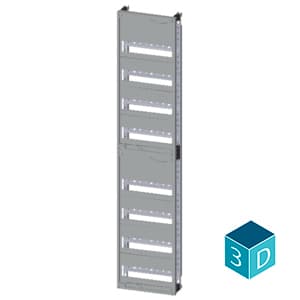

Siemens 8GK4003-8KK12. ALPHA 400 DIN quick assembly kit for modular installation devices tier spacing 125 mm 2 units N/PE-plug-in terminal H=1200, W=250.
Spesifikasi
Mechanical
Net Weight4.459 kg
Dimensions
Width250 mm
Height1 200 mm
Depth210 mm
Other
product brand nameALPHA
cover plate versionwith cutout
product designationQuick assembly kit modular installation devices
design of the producttier spacing 125 mm, 2 x N/PE busbar
number of DIN mounting bars8
number of modular width units per DIN mounting bar12
