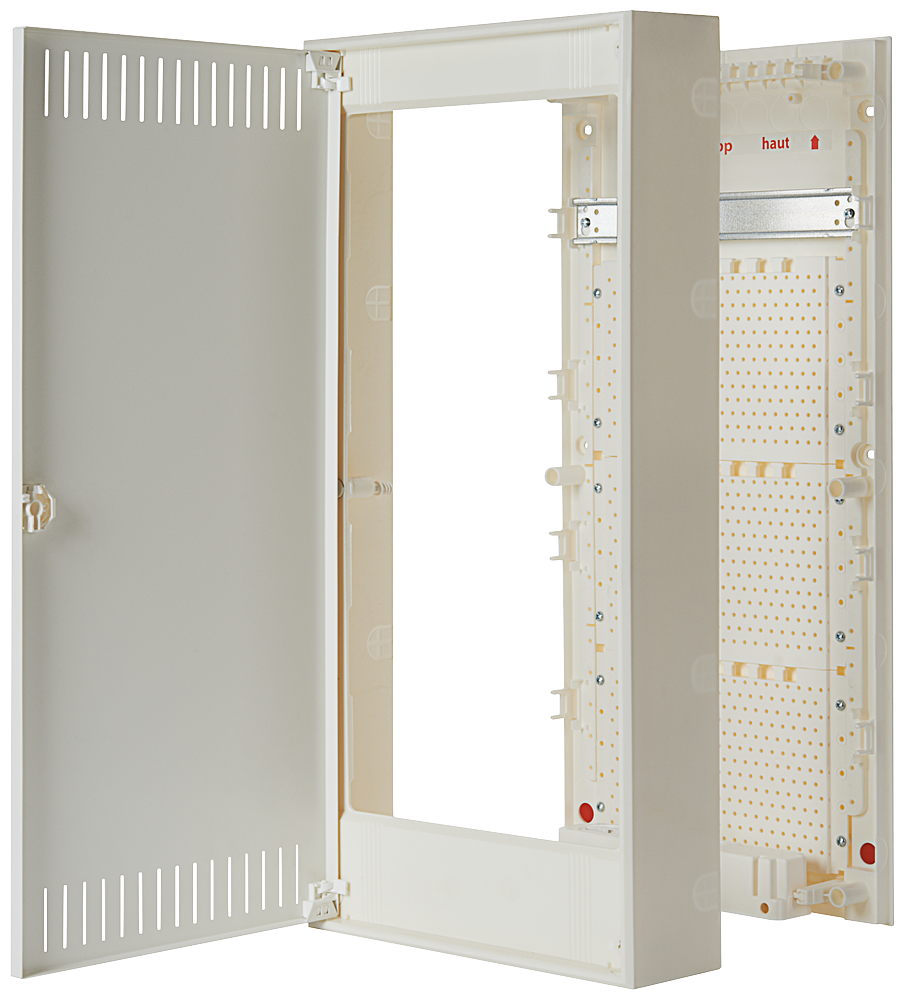

SIMBOX XL multimedia distribution board 63 A/230 V Surface mounting
Nomor Part: 8GB5036-3KM00
Kategori
Small distribution board
Siemens 8GB5036-3KM00. SIMBOX XL multimedia distribution board 63 A/230 V Surface mounting, 3-tier.
Spesifikasi
Mechanical
Net Weight2.824 kg
Dimensions
Width305 mm
Height99 mm
Depth70 mm
Other
colorwhite
number of rows3
fastening methodSurface mounting
RAL color number9 010
installation depth70 mm
product brand nameALPHA
product designationSIMBOX XL multimedia distribution board
protection class IPIP30
design of the product3-tier
design of support railStandard mounting rail 35 mm x 7.5 mm acc. to EN 60715
material of the enclosureplastic
design of the cap/top coverclosed
number of modular width units36
design of the product EMC versionNo
operating resource protection classII
operating voltage at AC rated value400 V
product extension optional side-by-side mountingNo
