colorwhite
number of rows2
fastening methodflush mounted
RAL color number9 010
installation depth70 mm
product brand nameALPHA

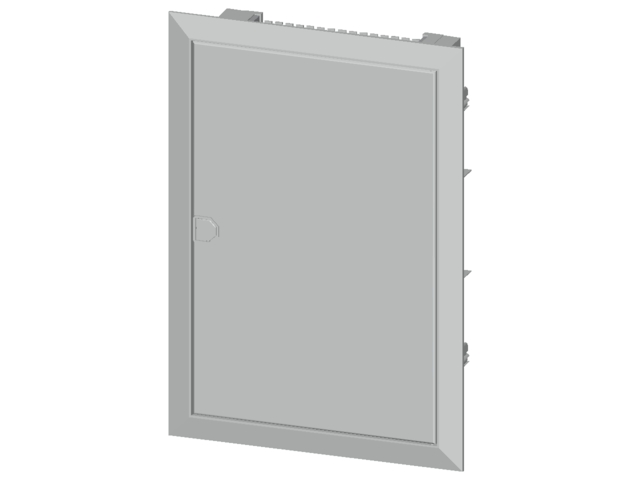

product designationSIMBOX XL
protection class IPIP30
design of the productFlush mounting
design of support railStandard mounting rail 35 mm x 7.5 mm acc. to EN 60715
rotation angle of door125°
material of the enclosureplastic
design of the cap/top coverclosed
equipment of terminal strip1x8GB5016-5KM, 1x8GB5005-5KM
design of the terminal stripPlug-in terminal
busbar center-to-center spacing125 mm
number of modular width units24
design of the product EMC versionNo
operating resource protection classII (total insulation)
operating voltage at AC rated value400 V
product extension optional side-by-side mountingNo
