SIMBOX XL surface-mounting
Nomor Part: 8GB5024-0KM
Kategori
Small distribution board

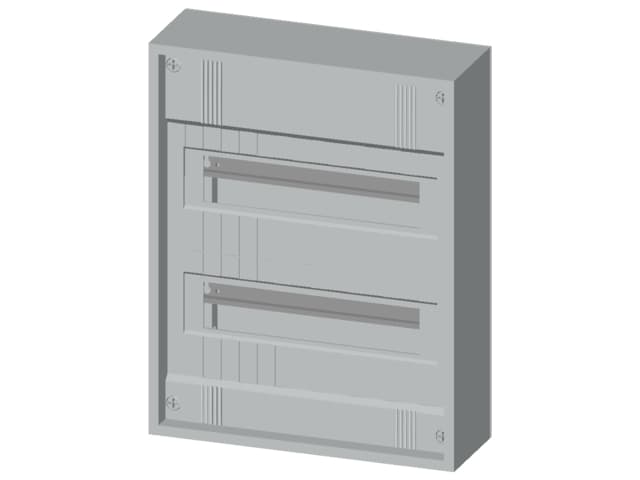

Siemens 8GB5024-0KM. SIMBOX XL surface-mounting, without door 2-tier 2x 12 MW (14 MW) Safety class 2.
Spesifikasi
Mechanical
Net Weight1.499 kg

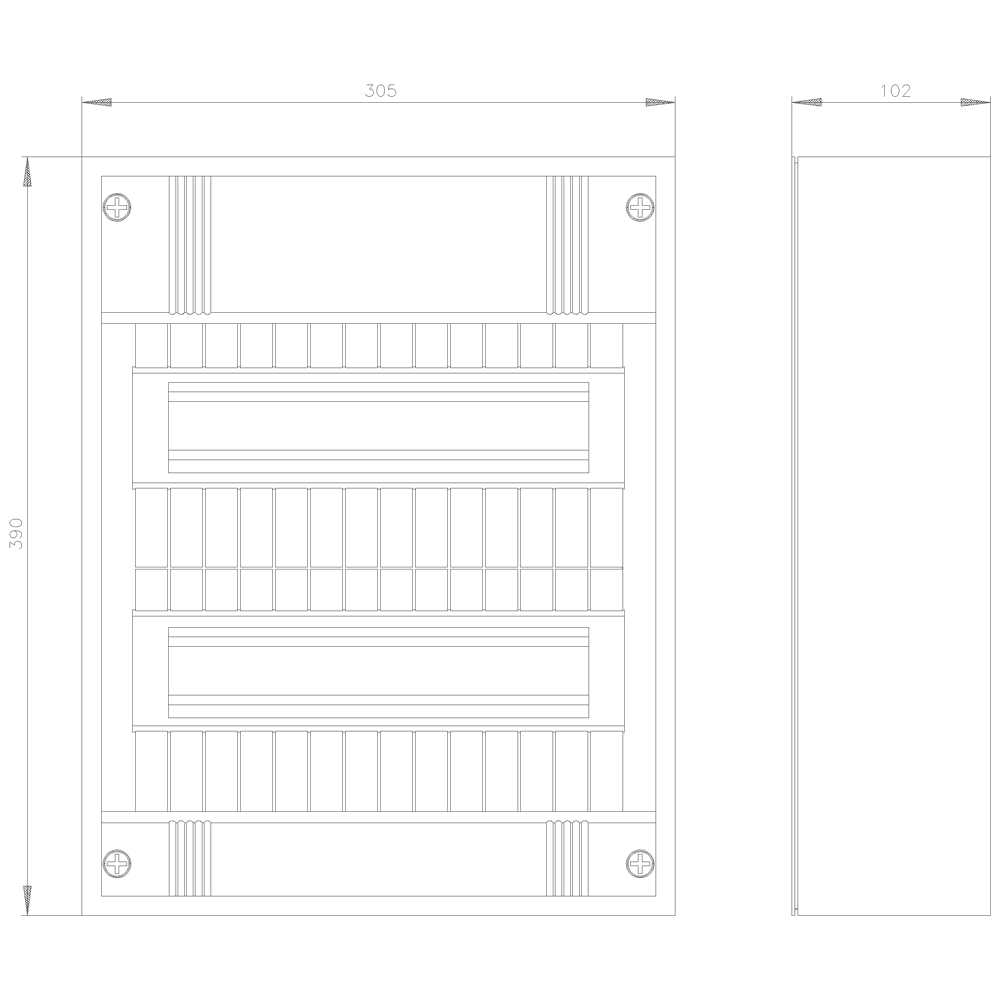

Dimensions
Width305 mm
Height375 mm
Depth99 mm
Other
colorwhite
number of rows2
fastening methodSurface mounting
RAL color number9 010
installation depth70 mm
product brand nameALPHA
product designationSIMBOX XL
protection class IPIP30
design of support railStandard mounting rail 35 mm x 7.5 mm acc. to EN 60715
rotation angle of door135°
material of the enclosureplastic
design of the cap/top coverclosed
equipment of terminal strip1x8GB5008-5KM, 1x8GB5005-5KM
design of the terminal stripScrew terminal
busbar center-to-center spacing125 mm
number of modular width units12
design of the product EMC versionNo
operating resource protection classII
operating voltage at AC rated value400 V
product extension optional side-by-side mountingNo
