SIWAREX DB
Nomor Part: 7MH5001-0AD01
Kategori
Heavy duty scale

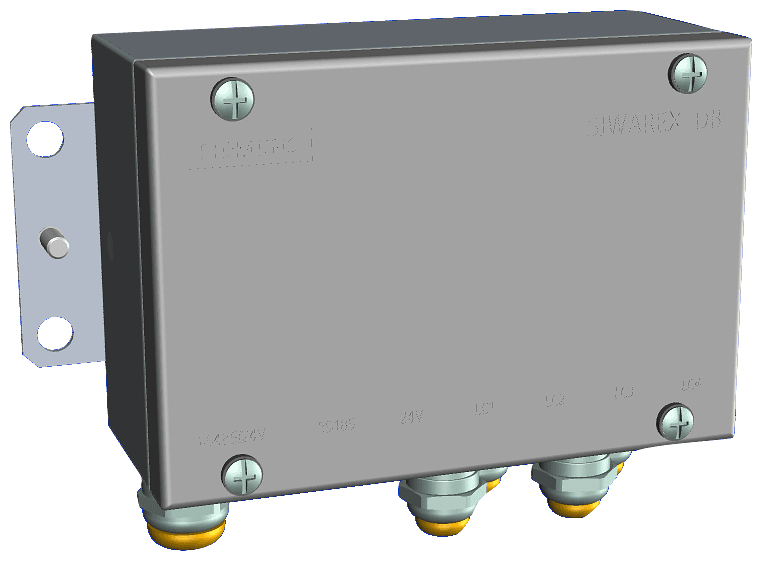

Siemens 7MH5001-0AD01. SIWAREX DB, four-channel digital junction box for additional diagnostic options for analog load cells / strain gauges (full bridges) for SIWAREX WP weighing module, 1xRS485, 4xLC load cell interface (1-4mV/V), stainless steel housing, protection class: IP66, Ex approval (ATEX and IECEX): II 3 G Ex ec IIC T4 Gc and II 3 D Ex tc IIIC T120°C DC.
Spesifikasi

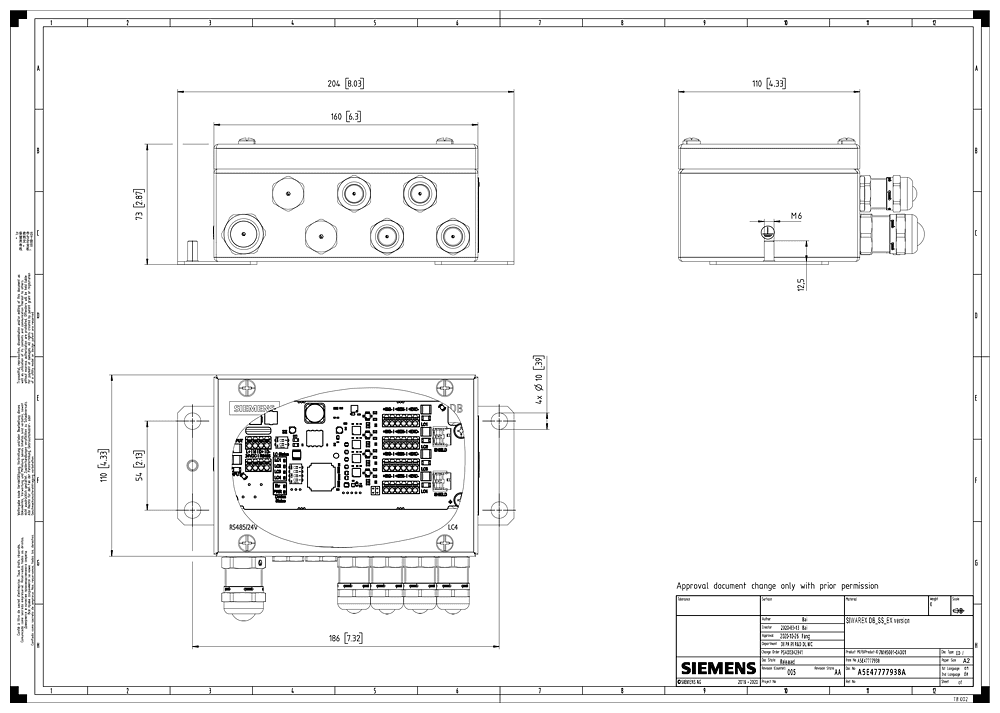

Dimensions
Width204 mm
Height110 mm
Depth73 mm
Other
CE markYes
UKCA markYes
UL approvalYes
Weight, approx.1.34 kg
RoHS conformityYes
Design of housingStainless steel
Type of supply voltage24 V DC
IP degree of protectionIP66, Nema 4X for devices without explosion protection; IP65 for devices with explosion protection
Number of digital inputs0
Product type designationSIWAREX DB
Delivery quantity in pieces1
— Connectable cable cross-sections for flexible cables with end sleeve, max.16
— Connectable cable cross-sections for flexible cables with end sleeve, min.24
