Stairwell light timer
Nomor Part: 7LF6310
Kategori
Staircase lighting timer
Siemens 7LF6310. Stairwell light timer,230V, 1 NO contact 16A 250V 50Hz, electronic,setting range 0,5...10 min.,for 3- or 4-wire circuit,resettable,max. glow lamp current 25mA,1WE.
Spesifikasi
Mechanical
Net Weight79 g

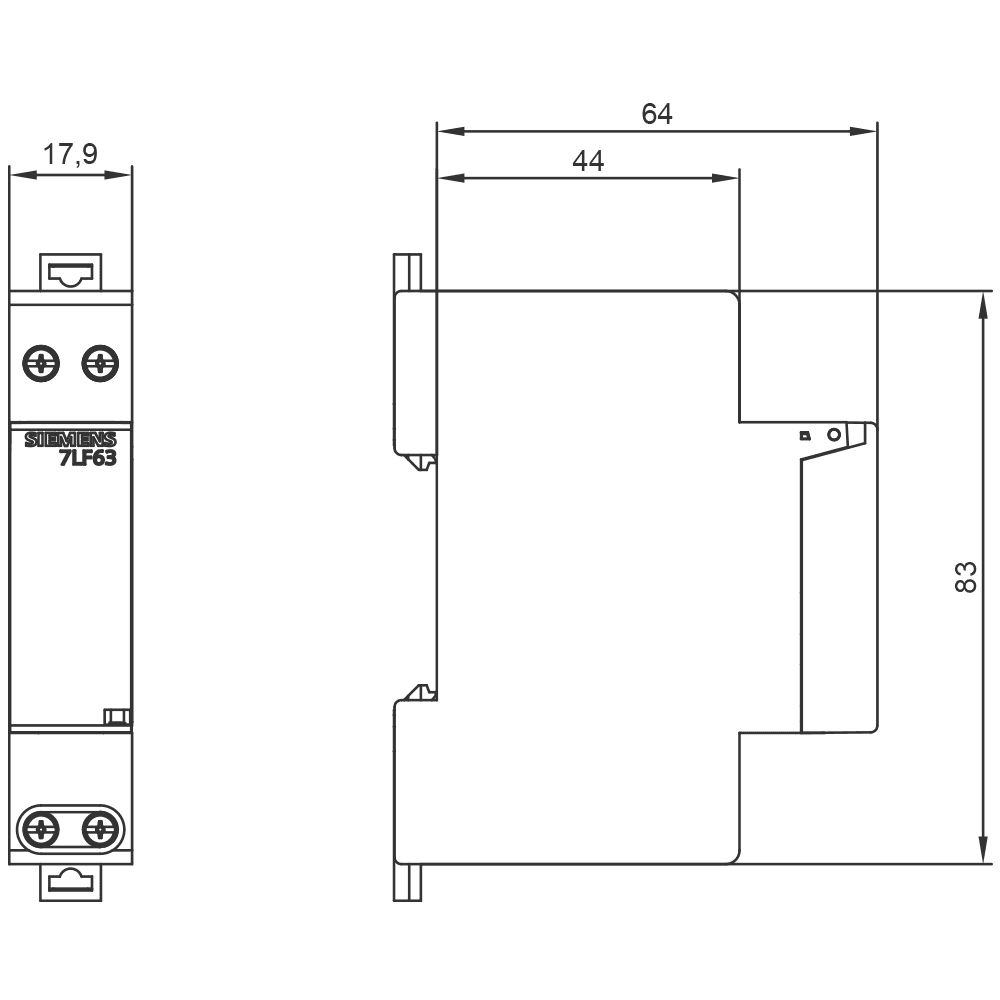

Dimensions
Width18 mm
Height90 mm
Depth64 mm
Other
fastening methodDIN rail
installation depth70 mm
product brand nameSENTRON
product designationStairwell lighting timer
switch-off prewarningwithout
number of CO contacts0
number of NC contacts0
number of NO contacts1
number of modular width units1
type of voltage of the operating voltageAC
staircase lighting timing switch reset functionresettable
principle of operation of the staircase lighting switchelectronic
switching capacity active power with incandescent lamp load2 000 W
power loss [W] for rated value of the current at AC in hot operating state per pole0.8 W
