accuracy per day1.5 s
fastening methodDIN rail
number of channels1
product brand nameSENTRON

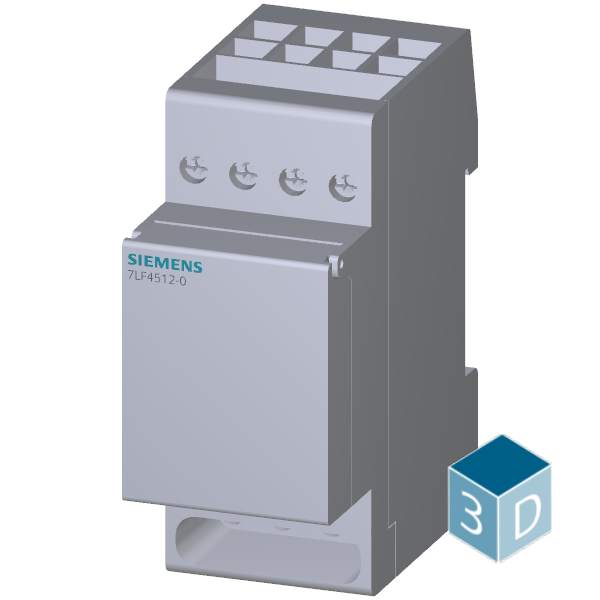

product designationDigital time switch
protection class IPIP20
design of the productTop
number of memory slots28
number of modular width units2
design of the switching functionCO contact
supply voltage frequency maximum60 Hz
operating voltage at AC rated value250 V
product feature external switch inputNo
type of voltage of the supply voltageAC
principle of operation line-synchronousYes
principle of operation radio-controlledNo
principle of operation quartz-controlledNo
number of terminals with cross-head screw1
product feature floating switching contactYes
overvoltage category according to IEC 61010-1III
shortest switching time interval of channel 160 s
switching capacity current at AC at 250 V rated value16 A
power loss [W] for rated value of the current at AC in hot operating state per pole1 W
connectable conductor cross-section in main circuit for flexible conductor with core end processing maximum2.5 mm²
