Aktif

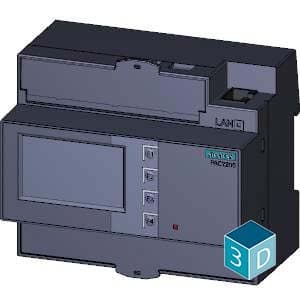

SENTRON 7KM measuring device PAC2200
Nomor Part: 7KM2200-2EA30-1EA1
Kategori
Kilowatt-hour meter
Siemens 7KM2200-2EA30-1EA1. SENTRON 7KM measuring device PAC2200, L-L: 400 V, L-N: 230 V, 5 A, DIN rail instrument, 3-phase, Modbus TCP, apparent / active / reactive energy, with internal power supply, apparent / active / reactive energy.
Spesifikasi
Mechanical
Net Weight424 g
Other
type of signalS0
display versiondigital
fastening methodDIN rail device
product functionapparent/active/reactive energy
product brand nameSENTRON
product designationEnergy counter
protection class IPIP40
suitability for useImport/export
design of the displayLCD
protocol is supportedModbus TCP
design of the pulse outputElectrical
product quality calibratedNo
design of the energy counterSolid-state
number of modular width units6
operational current rated value5 A
type of the power supply networkthree-wire/four-wire
number of characters that can be displayed12
type of measured value detection load profileNo
