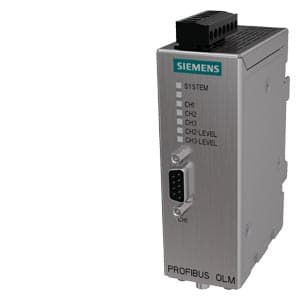

PROFIBUS OLM/G12 V4.0 Optical Link Module with 1 RS 485 and 2 glass FOC interfaces (4 BFOC sockets) for standard Distances up to 2850 m
Nomor Part: 6GK1503-3CB00
Kategori
Media converter
Siemens 6GK1503-3CB00. PROFIBUS OLM/G12 V4.0 Optical Link Module with 1 RS 485 and 2 glass FOC interfaces (4 BFOC sockets) for standard Distances up to 2850 m, with signaling contact and measuring output..
Spesifikasi
Mechanical
Net Weight340 g

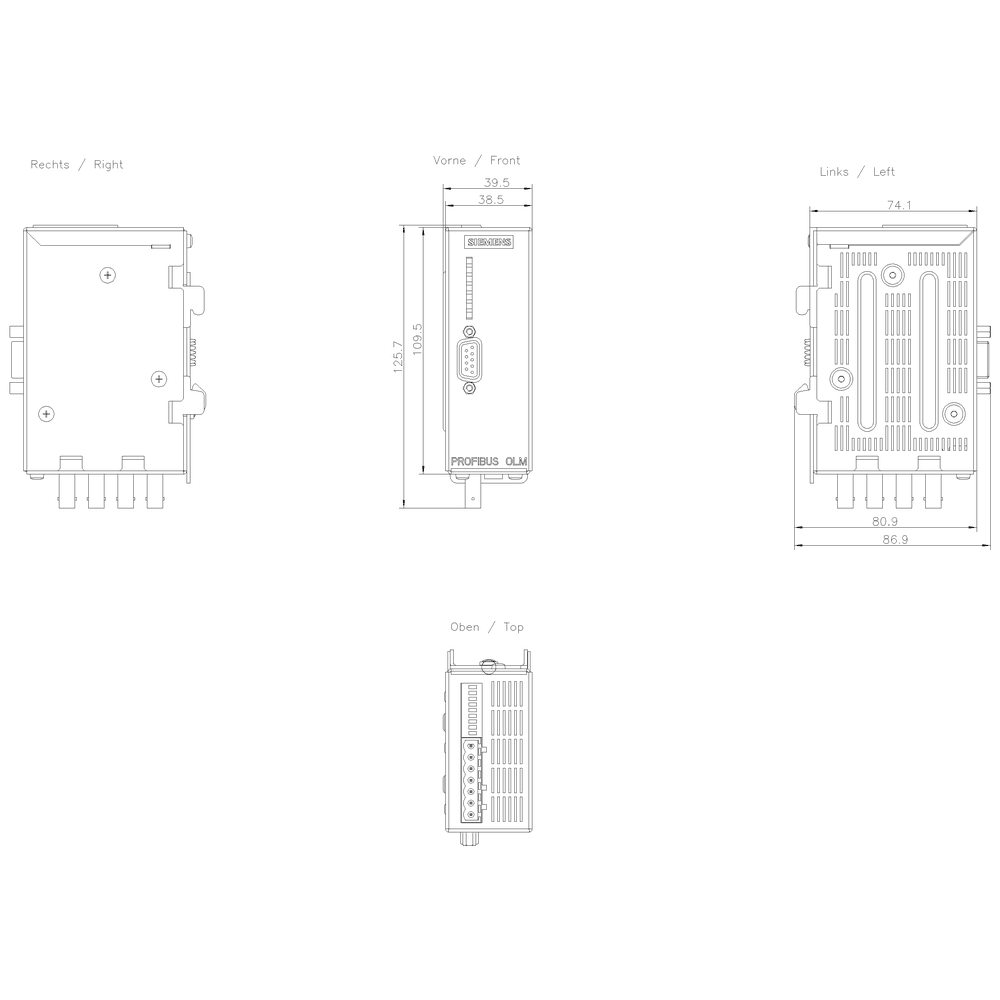

Dimensions
Width39.5 mm
Height112 mm
Depth74.5 mm
Other
designcompact
protection class IPIP40
security informationSiemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement – and continuously maintain – a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7)
supply voltage / at DC18.8 ... 28.8 V
propagation delay [bit]6.5 bit
certificate of suitabilityEN 61000-6-2, EN 61000-6-4
transfer rate / with PROFIBUS9.6 kbit/s ... 12 Mbit/s
transfer rate / with PROFIBUS PA45.45 kbit/s
product function / ring redundancyYes
supply voltage / at DC / rated value24 V
Environmental Product DeclarationYes
type of voltage / of the supply voltageDC
consumed current / at DC / at 24 V / maximum0.2 A
wavelength / of the optical interface / note860 nm, multimode
product component / fusing at power supply inputYes
product function / is supported / identification linkYes; acc. to IEC 61406-1:2022
number of optical interfaces / for fiber optic cable2
design of the optical interface / for fiber optic cableBFOC port
operational current / of the signaling contacts / at DC / maximum0.1 A
operating voltage / of the signaling contacts / at DC / rated value24 V
certificate of suitability / CCC / for hazardous zone according to GB standardNo
number of electrical/optical connections / for network components or terminal equipment / maximum3
