PROFIBUS OBT; opt. bus terminal for connection of a PROFIBUS nodes without integr. opt. interface to the opt. PROFIBUS DP; without Simplex plug.
Nomor Part: 6GK1500-3AA10
Kategori
Media converter

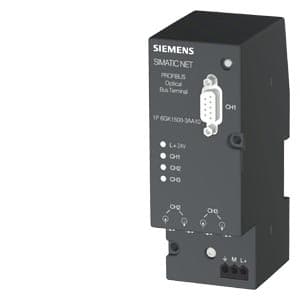

Siemens 6GK1500-3AA10. PROFIBUS OBT; opt. bus terminal for connection of a PROFIBUS nodes without integr. opt. interface to the opt. PROFIBUS DP; without Simplex plug..
Spesifikasi
Mechanical
Net Weight400 g

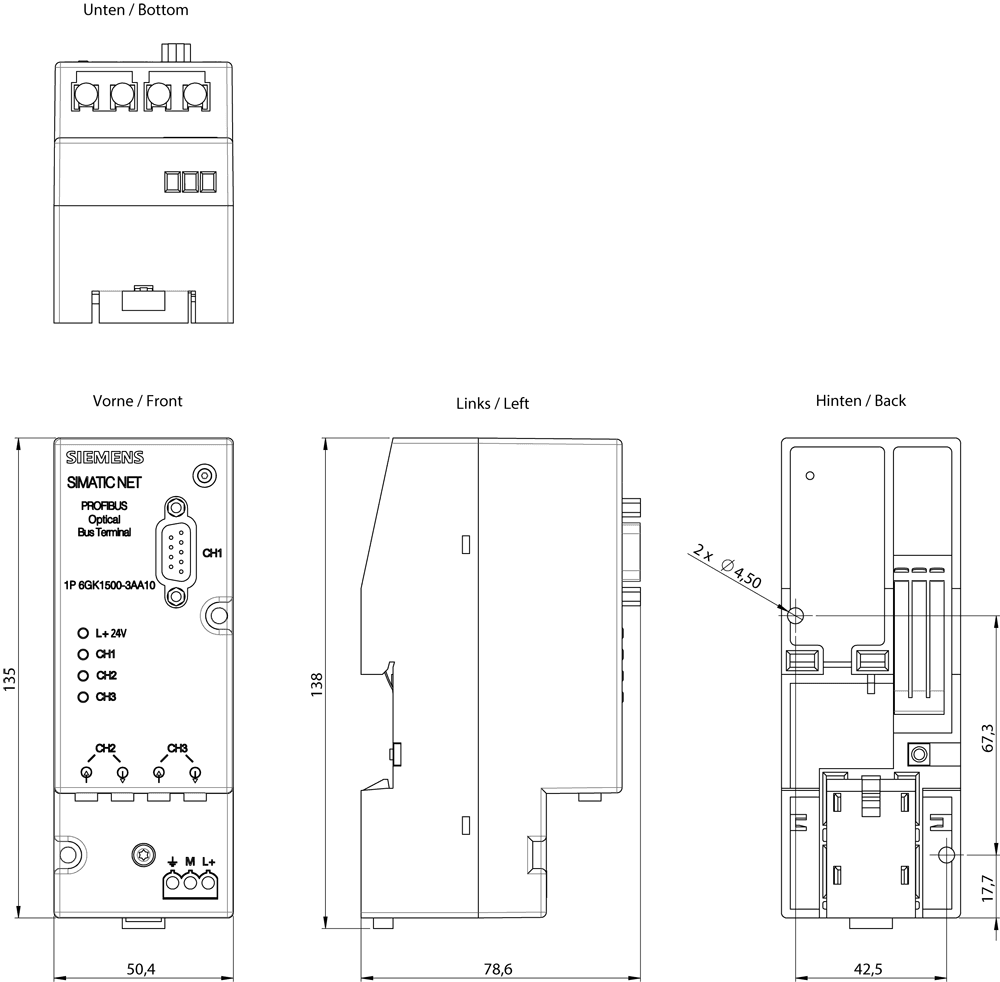

Dimensions
Width50.5 mm
Height138 mm
Depth78 mm
Other
designcompact
protection class IPIP30
security informationSiemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement – and continuously maintain – a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7)
supply voltage / at DC19.2 ... 28.8 V
propagation delay [bit]6.5 bit
certificate of suitabilityEN 61000-6-2, EN 61000-6-4
transfer rate / with PROFIBUS9.6 kbit/s ... 12 Mbit/s
transfer rate / with PROFIBUS PA45.45 kbit/s
product function / ring redundancyNo
supply voltage / at DC / rated value24 V
type of voltage / of the supply voltageDC
wavelength / of the optical interface / note660 nm, POF/PCF
product function / is supported / identification linkYes; acc. to IEC 61406-1:2022
number of optical interfaces / for fiber optic cable2
design of the optical interface / for fiber optic cableDuplex port
certificate of suitability / CCC / for hazardous zone according to GB standardNo
number of electrical/optical connections / for network components or terminal equipment / maximum3
