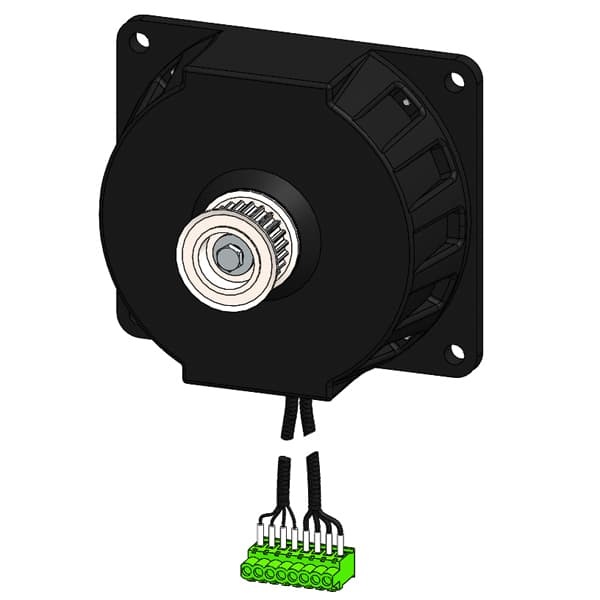

SIDOOR MED280 Direct operating mechanism
Nomor Part: 6FB1203-0AT12-7DA0
Kategori
Industrial heating control system
Siemens 6FB1203-0AT12-7DA0. SIDOOR MED280 Direct operating mechanism, max. 280 kg door weight, Cable length 1.5 m, 24VDC, -25-+70 °C.
Spesifikasi
Other
CE markYes
Speed, max.0.8 m/s
UL approvalNo
Rated value (DC)24 V

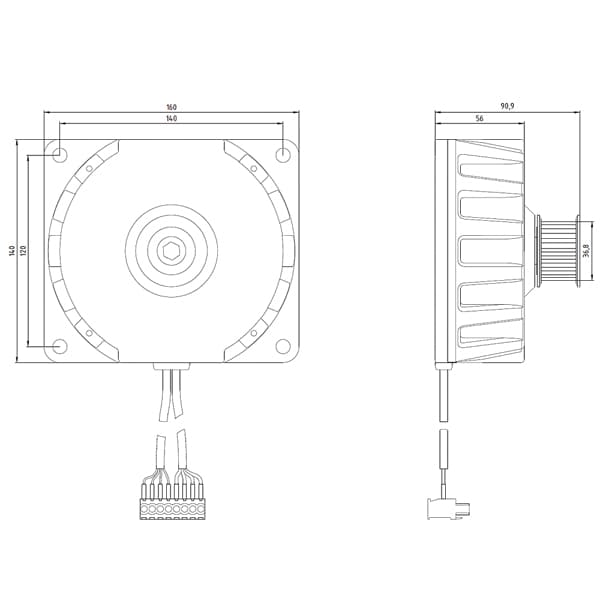

Width of motor160 mm
Height of motor140 mm
Length of motor56 mm
Active power input233 W
EAC (formerly Gost-R)Yes
Weight of door, max.280 kg
China RoHS complianceYes
Product type designationMED280
TÜV Inspectorate approvalYes
Operational current (rated value)9.7 A
Number of pulses per revolution, max.1 024
Torque of the rotary operating mechanism (rated value)4.7 N·m
