SIDOOR ATD400T RELAY CONTROL UNIT FOR INTERIOR TRAIN DOORS
Nomor Part: 6FB1121-0BM13-3AT2
Kategori
Door control system
Siemens 6FB1121-0BM13-3AT2. SIDOOR ATD400T RELAY CONTROL UNIT FOR INTERIOR TRAIN DOORS, UP TO 180KG DOOR WEIGHT, 36VDC, 1*RS485, 4*DI, 3*RELAY, 1*24VDC OUT, -25 - +70 DEGREE CELSIUS, EN 50155, EN 50121-3-2, EN 45545-2, EN 61373.
Spesifikasi

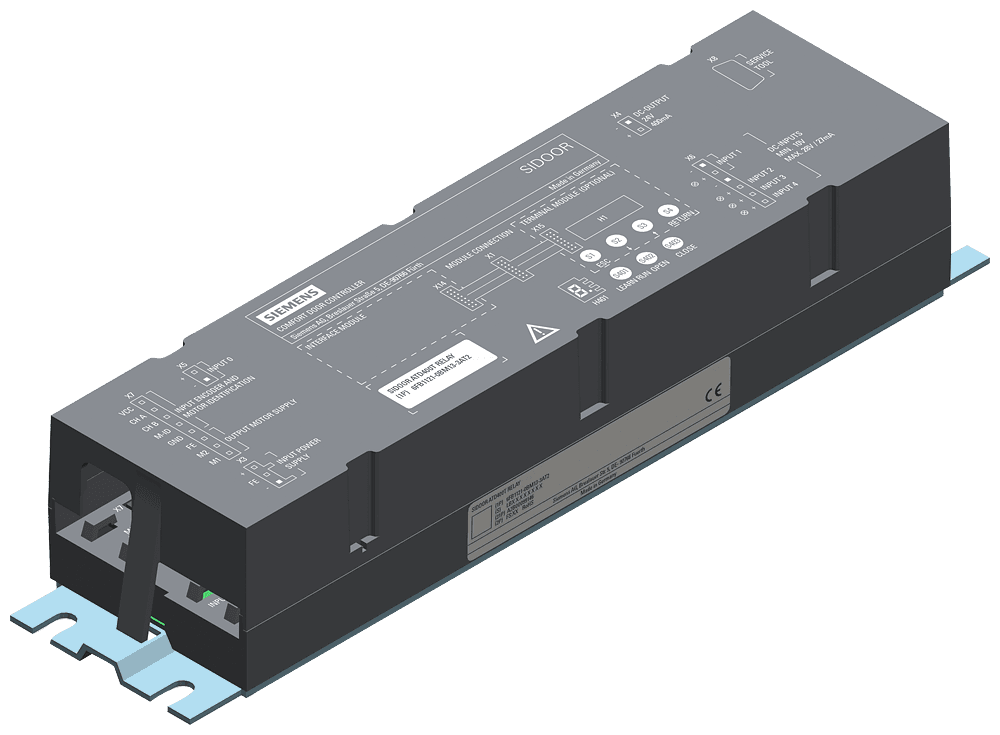

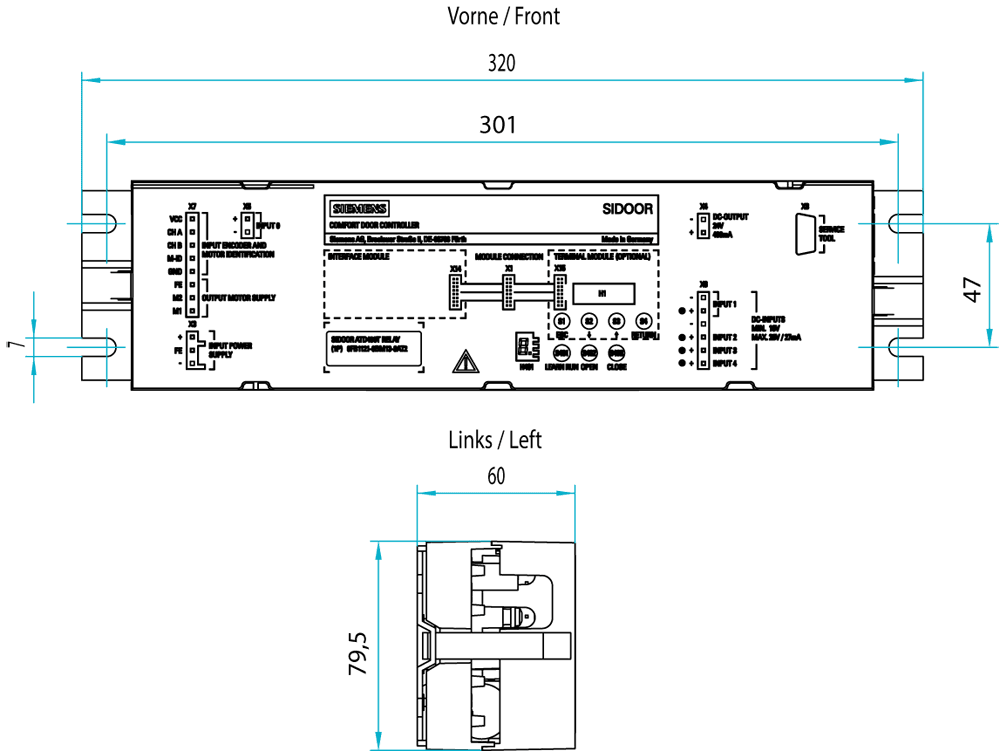

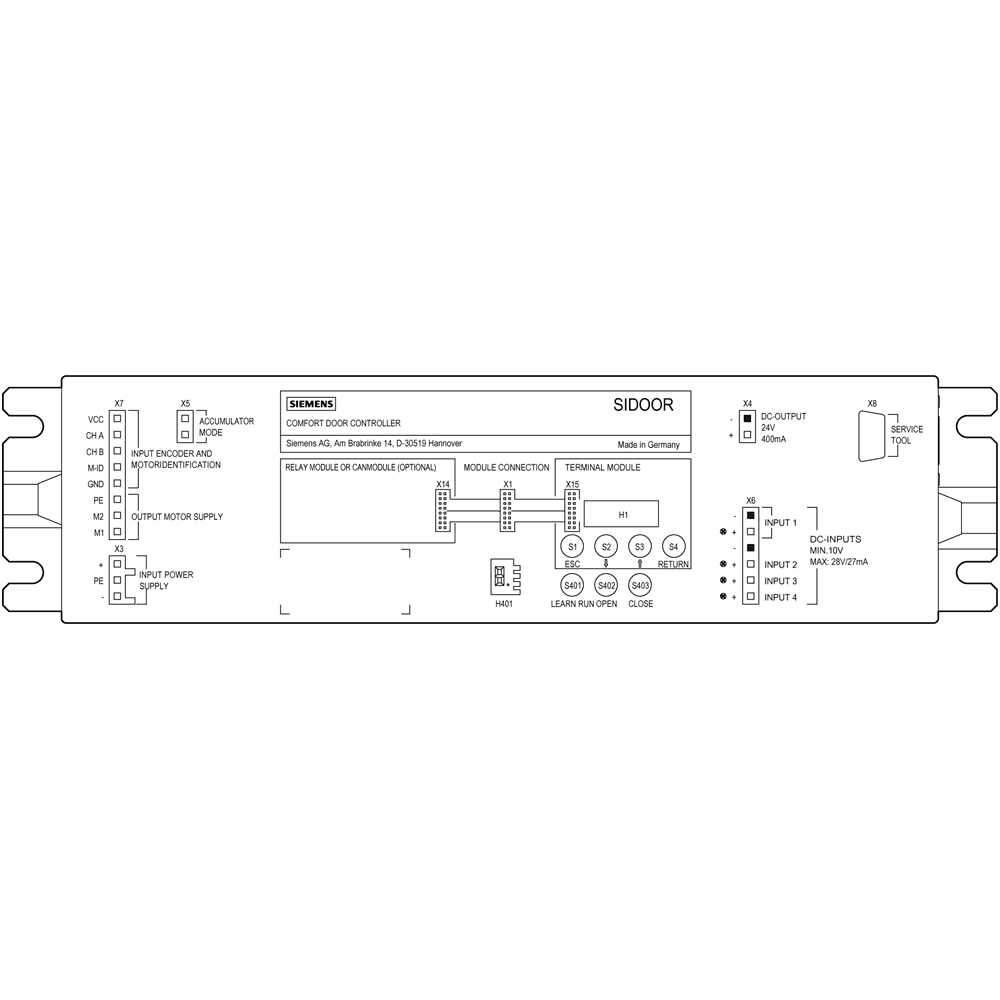

Dimensions
Width320 mm
Height60 mm
Depth80 mm
Other
CE markYes
UL approvalNo
Overload-proofYes
Rated value (DC)24 V
— at 50 V DC, max.1 A; 50 V DC switching voltage not released for NFPA-relevant countries
— at 50 V DC, min.0.01 A; 50 V DC switching voltage not released for NFPA-relevant countries
— at 230 V AC, max.1 A
— at 230 V AC, min.0.01 A
Counterforce, max.80 N
Standard for EMCEN 50121-3-2
Output voltage (DC)24 V; Ensure correct polarity! CAUTION: Do not supply with external voltage!
Active power input80 W
Interfaces/bus typewithout
short-circuit proofYes
Weight of door, max.180 kg
Degree of pollution2
Overvoltage category2
China RoHS complianceYes
Active power input, max.540 W
Control inputs isolatedYes
Current consumption, max.15 A
IP degree of protectionIP20
Product type designationATD400T relay
Control inputs p-switchingYes
Opening width of door, max.4 m
Opening width of door, min.0.25 m
Design of the power supplyDC
permissible range, lower limit (DC)16.8 V
permissible range, upper limit (DC)37.1 V
Operating cycle frequency of door, max.180 1/h
Installation and mounting instructionsAt operating temperatures > 55 °C a sufficiently large (at least 350 mm x 350 mm), unpainted, metal mounting plate must be used
Manufacturer's article no. of the usable motor6FB1103-0AT10-4MB0, 6FB1103-0AT11-4MB0, 6FB1103-0AT15-4MB0, 6FB1103-0AT16-4MB0
