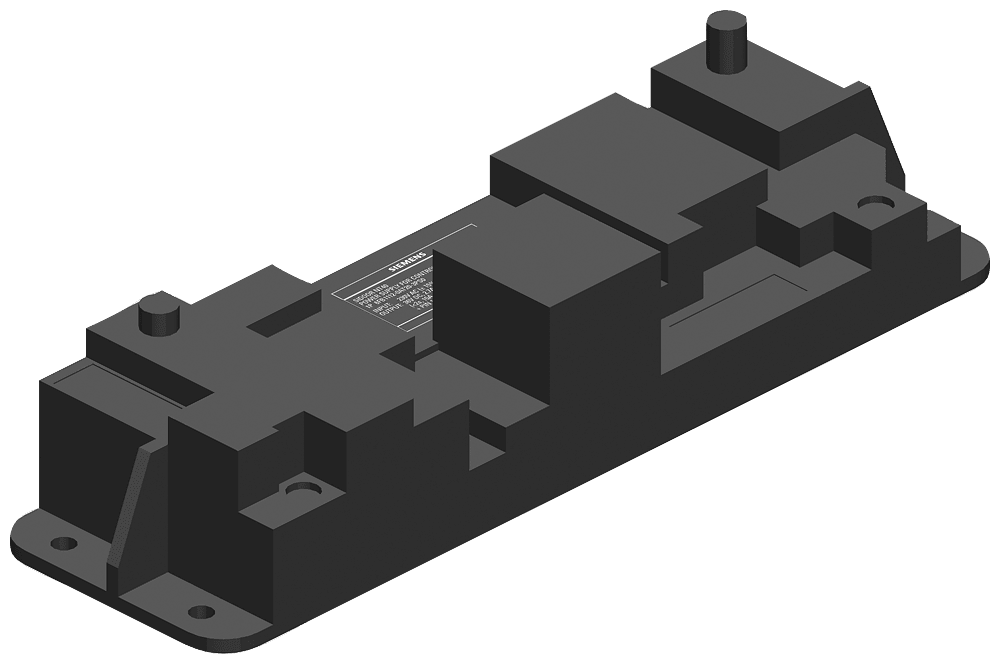

SIDOOR NT40 Switched-mode power supply
Nomor Part: 6FB1112-0AT20-3PS0
Kategori
Door control system
Siemens 6FB1112-0AT20-3PS0. SIDOOR NT40 Switched-mode power supply, Input voltage: 230V AC (+-15%), 50/60 Hz, Output voltage: 36VDC, IP54, incl. line cable with Safety plug (CEE 7/4) of the Length 2 m, incl. connecting cable to Control device of length 1.5 m, -20 to +55 °C.
Spesifikasi

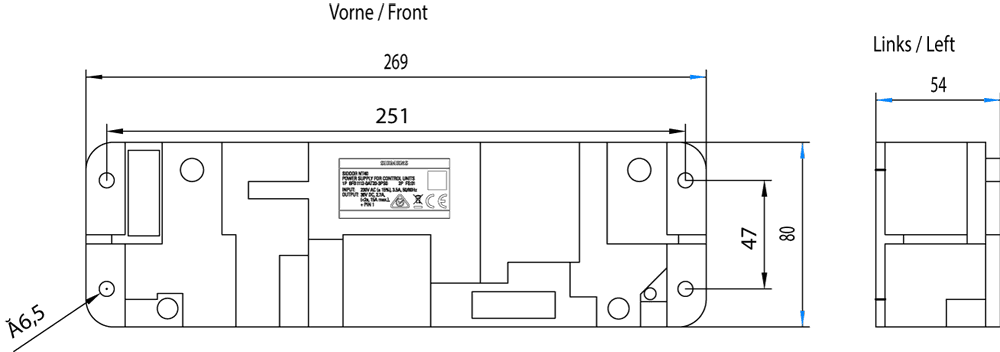

Dimensions
Width270 mm
Height55 mm
Depth80 mm
Other
CE markYes
Mounting typeFour 5 mm screws
Rated value (AC)230 V
Rated value (DC)36 V; SELV
Standard for EMCEMC Directive 2004/108/EC, EN 12015, EN 12016
EAC (formerly Gost-R)Yes
Degree of pollution2
Standard for safetyEN 61010-1 / EN 61010-2-201
Overvoltage category2
China RoHS complianceYes
Active power input, max.100 W
IP degree of protectionIP54
Rated value at 230 V AC0.7 A
Emitted active power, max.100 W
Product type designationNT40
TÜV Inspectorate approvalYes
Active apparent power, max.650 VA
Current output (rated value)2.5 A
Equipment protection classI
Current consumption for 2 s, max.3.5 A
Emitted active power (restricted to 2 s)540 W
Design of electrical connection at inputSCHUKO connector DIN 49.441, CEE7/VII
Design of electrical connection at outputWAGO 721-103/026
Temporary overload current (for 2 s maximum)15 A
Operational current of fuse protection at input, max.10 A
Operational current of fuse protection at input, min.6 A
Relative symmetrical tolerance of the output voltage3 %
relative symmetrical tolerance of the supply voltage15 %
Efficiency at 230 V AC (with 100 W emitted active power)90 %
Tripping characteristic class of fuse protection at inputB
