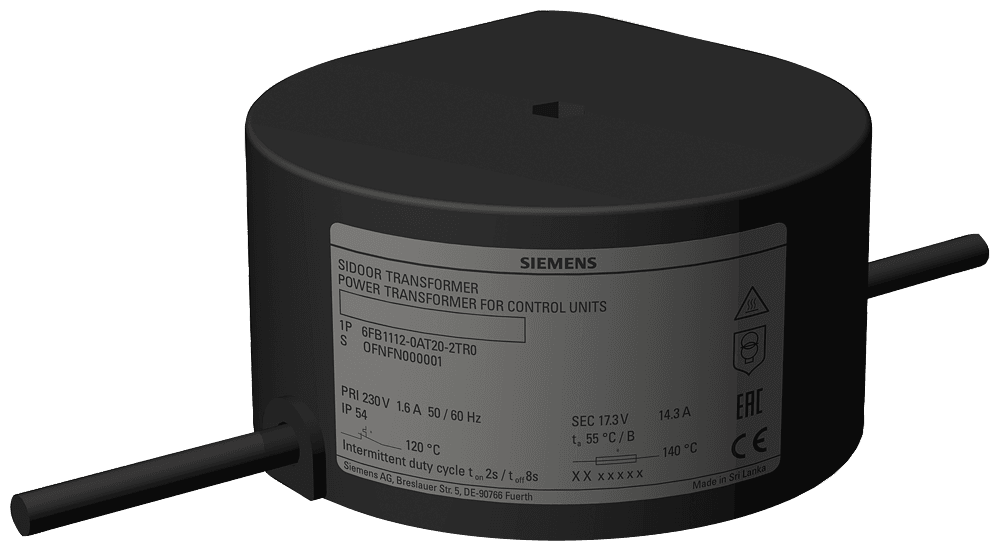

SIDOOR TRANSFORMER Power supply unit
Nomor Part: 6FB1112-0AT20-2TR0
Kategori
Door control system
Siemens 6FB1112-0AT20-2TR0. SIDOOR TRANSFORMER Power supply unit, Input voltage 220-240 VAC(+/-10%)50/60 Hz, Output voltage 16.5-18V r.m.s. Fully commutated, IP54, incl. line cable with Safety plug (CEE7/7) 2 m long, incl. connecting cable to control device of the Length 1.5 m.
Spesifikasi
Dimensions
Width145 mm
Height65 mm
Depth126 mm
Other
CE markYes
Mounting typeHexagon head bolt M6, L > 70 mm
RoHS conformityYes
Standard for EMCEN 12015 / EN 12016 / EN 61000-6-2 / EN 61000-6-3 / EN 61000-3-2 / EN 61000-3-3
EAC (formerly Gost-R)Yes
Degree of pollution2
Standard for safetyLow Voltage Directive (LVD) 2014/35/EU
Overvoltage category2
China RoHS complianceYes
Current consumption, max.1.6 A
IP degree of protectionIP54
Emitted active power, max.115 W; Average value above 10 s
Product type designationTRANSFORMER
Current output (rated value)14.3 A; t on 2 s / t off 8 s
permissible range, lower limit (AC)220 V
permissible range, upper limit (AC)240 V
Design of electrical connection at inputSCHUKO connector DIN 49.441, CEE7/VII
Design of electrical connection at outputWAGO 721-103/026
RMS value (pulsating DC voltage at full load)17.3 V; at 230 V AC
RMS value (pulsating DC voltage at full load), max.18 V
RMS value (pulsating DC voltage at full load), min.16.5 V
Operational current of fuse protection at input, max.10 A
Operational current of fuse protection at input, min.6 A
relative symmetrical tolerance of the supply voltage10 %
RMS value (pulsating DC voltage at 0.7 mA peak current), max.27 V; At 264 V AC
Tripping characteristic class of fuse protection at inputD6, C10
