SIMATIC S7-400 - Siemens | JRB

SIMATIC S7-400

Aktif

SIMATIC S7-400

Name: SIMATIC S7-400
Brand: Siemens
SKU: 6ES7407-0RA02-0AA0
Availability: InStock

Nomor Part: 6ES7407-0RA02-0AA0

Merek

Kunjungi Situs Web

Kategori

PLC system power supply

Permintaan WhatsApp

Siemens 6ES7407-0RA02-0AA0. SIMATIC S7-400, Power supply PS407, 20 A, wide range, UC 120/230V, 5 V DC/20 A.

Spesifikasi

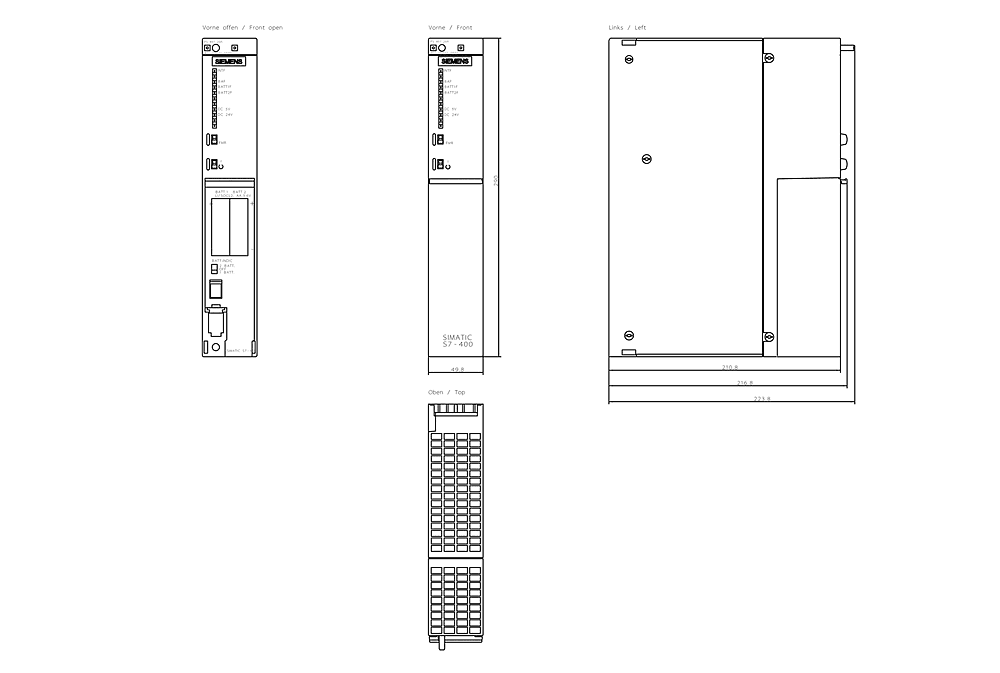

Dimensions

Width50 mm

Height290 mm

Depth217 mm

Other

BISYes

FM approvalYes; Ta: 0 °C to 70 °C T4

Weight, approx.1 300 g

Power loss, typ.35 W

primary/secondaryYes

Inrush current, max.88 A; Full width at half maximum 1.1 ms

Leakage current, max.5 mA

Overvoltage categoryII

Active power input, typ.158 W

Type of output voltageDC

Rated value at 120 V AC1.4 A

Rated value at 120 V DC1.4 A

Rated value at 230 V AC0.7 A

Rated value at 230 V DC0.7 A

Short-circuit protectionYes

Equipment protection classI, with protective conductor

for backplane bus (5 V DC), max.20 A; no base load required

for backplane bus (24 V DC), max.1 A; idling-proof

Design of electrical connection3x 1.5 mm², solid or stranded wire with end sleeve, external diameter 3 mm to 9 mm

Unduhan

6ES7407-0RA02-0AA0_doc_0 6ES7407-0RA02-0AA0_doc_1 6ES7407-0RA02-0AA0_datasheet.pdf
