SIMATIC S7-400
Nomor Part: 6ES7407-0DA02-0AA0
Kategori
PLC system power supply
Siemens 6ES7407-0DA02-0AA0. SIMATIC S7-400, Power supply PS407: 4 A, wide range, UC 120/230V, 5 V DC/4 A.
Spesifikasi

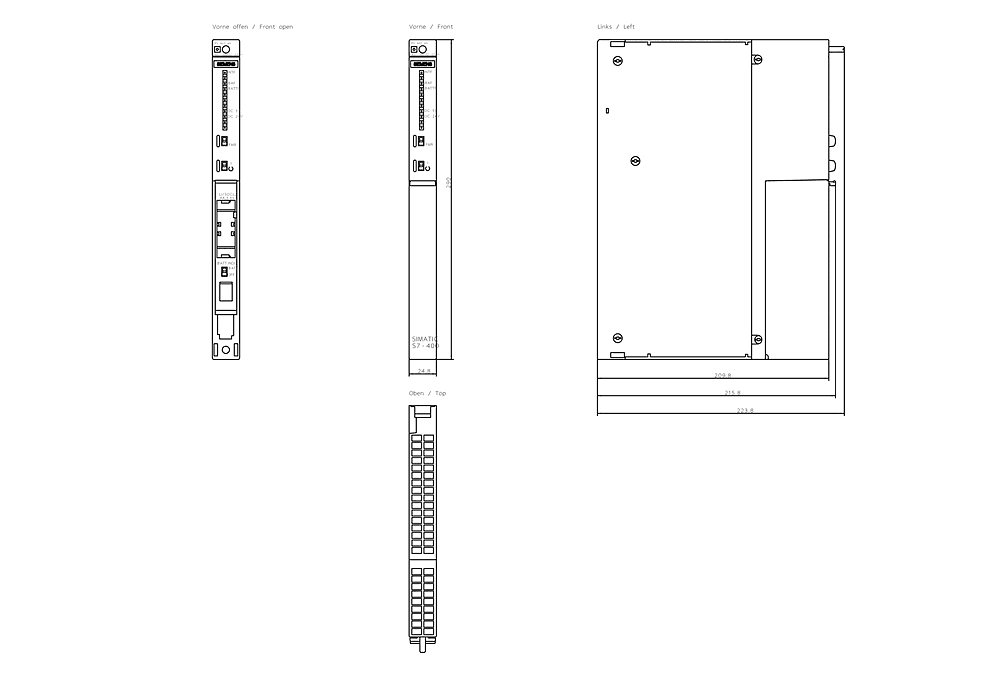

Dimensions
Width25 mm
Height290 mm
Depth217 mm
Other
BISYes
FM approvalYes; Ta: 0 °C to 70 °C T4
Weight, approx.760 g
Power loss, typ.20 W
primary/secondaryYes
Inrush current, max.8.5 A; Full width at half maximum 5 ms
Leakage current, max.5 mA
Overvoltage categoryII
Active power input, typ.52 W
Type of output voltageDC
Rated value at 120 V AC0.42 A
Rated value at 120 V DC350 mA
Rated value at 230 V AC0.22 A
Rated value at 230 V DC190 mA
Short-circuit protectionYes
Equipment protection classI, with protective conductor
for backplane bus (5 V DC), max.4 A; no base load required
for backplane bus (24 V DC), max.0.5 A; idling-proof
Design of electrical connection3x 1.5 mm², solid or stranded wire with end sleeve, external diameter 3 mm to 9 mm
