SIMATIC S7-400 - Siemens | JRB

SIMATIC S7-400

Aktif

SIMATIC S7-400

Name: SIMATIC S7-400
Brand: Siemens
SKU: 6ES7405-0RA02-0AA0
Availability: InStock

Nomor Part: 6ES7405-0RA02-0AA0

Merek

Kunjungi Situs Web

Kategori

PLC system power supply

Permintaan WhatsApp

Siemens 6ES7405-0RA02-0AA0. SIMATIC S7-400, power supply PS405: 20 A, wide range, 24/48/60 V DC, 5 V DC/20 A,.

Spesifikasi

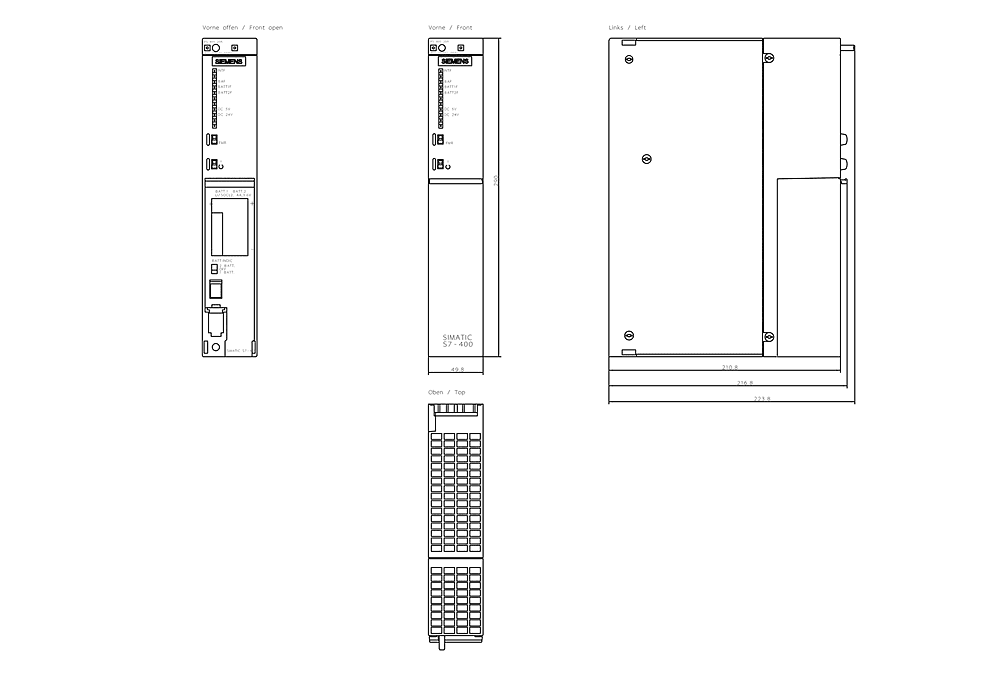

Dimensions

Width50 mm

Height290 mm

Depth217 mm

Other

BISYes

CCCYes

FM approvalYes; Ta: 0 °C to 60 °C T4

Weight, approx.1 300 g

Power loss, typ.44 W

primary/secondaryYes

Inrush current, max.56 A; Full width at half maximum 1.5 ms

Overvoltage categoryII

Active power input, typ.168 W

Rated value at 24 V DC7 A

Rated value at 48 V DC3.2 A

Rated value at 60 V DC2.5 A

Type of output voltageDC

Short-circuit protectionYes

Equipment protection classI, with protective conductor

for backplane bus (5 V DC), max.20 A; no base load required

for backplane bus (24 V DC), max.1 A; idling-proof

Design of electrical connection3x 1.5 mm², solid or stranded wire with end sleeve, external diameter 3 mm to 9 mm

Unduhan

6ES7405-0RA02-0AA0_doc_0 6ES7405-0RA02-0AA0_doc_1 6ES7405-0RA02-0AA0_datasheet.pdf
