SIMATIC DP
Nomor Part: 6ES7148-4EB00-0AA0
Kategori
Fieldbus, decentr. periphery - pneumatics module

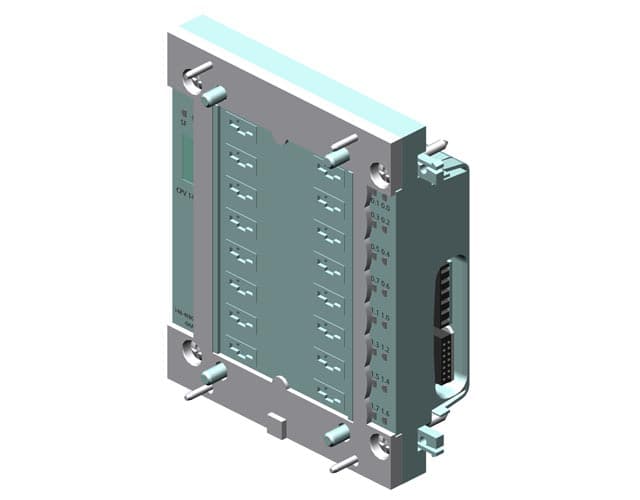

Siemens 6ES7148-4EB00-0AA0. SIMATIC DP, Pneumatic interface for ET 200 PRO, 16 DO pneumatics for coupling with Festo valve terminal CPV-14; incl. bus module.
Spesifikasi

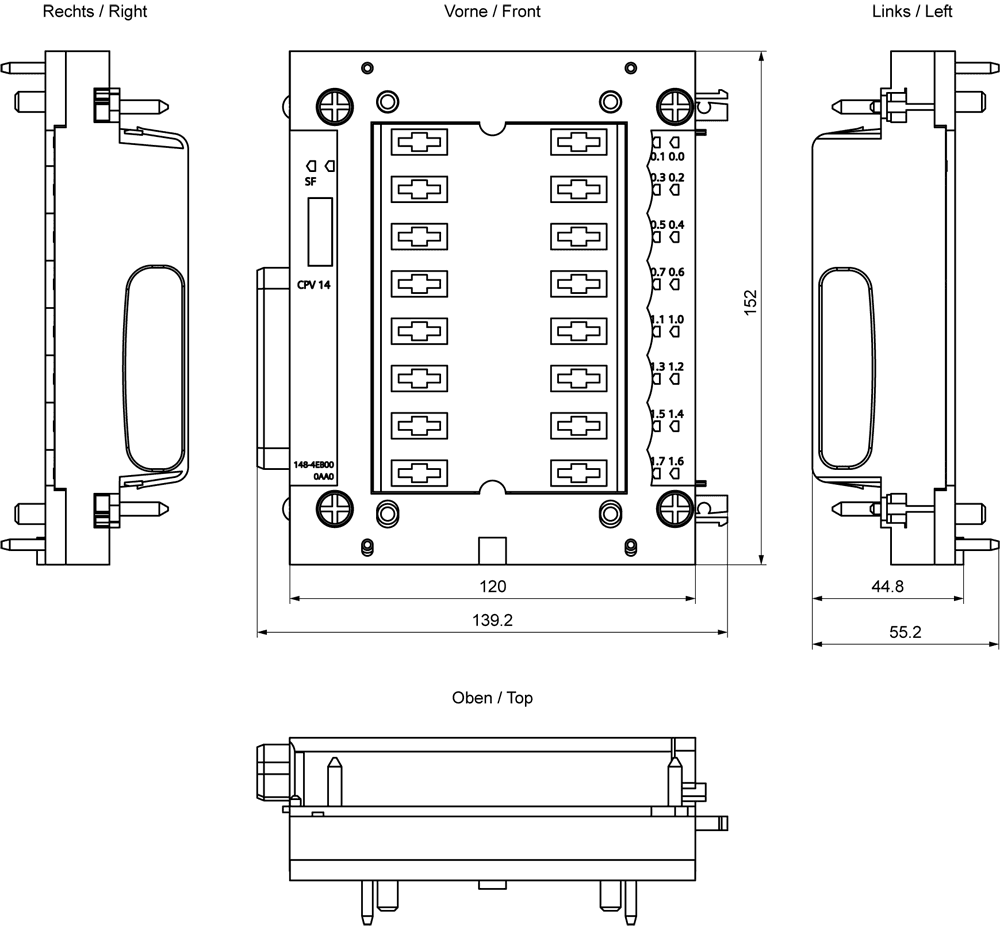

Dimensions
Width120 mm
Height152 mm
Depth47 mm
Other
RemarkDiagnosis load voltage 2L+
Power loss, typ.3.7 W
— up to 55 °C, max.330 mA; only up to 50 °C, limited by valves
Rated flow rate800 l/min
Diagnostics functionYes
Isolation tested with707 V DC (type test)
from load voltage 2L+, max.370 mA; Including valves
Number of digital outputs16
from backplane bus 3.3 V DC, max.25 mA
Number of connectable valves, max.16
permissible working pressure, max.8 bar
permissible working pressure, min.3 bar
Valve switching times from "0" to "1"24 ms
Valve switching times from "1" to "0"30 ms
between backplane bus and all other circuit componentsYes
Suitable for safety-related tripping of standard modulesYes
