SITOP BAT1600 battery monitor spare part for SITOP BAT1600 38 Ah Pb
Nomor Part: 6EP4130-0GJ00-0AY0
Kategori
Rechargeable battery
Siemens 6EP4130-0GJ00-0AY0. SITOP BAT1600 battery monitor spare part for SITOP BAT1600 38 Ah Pb.
Spesifikasi
Mechanical
Net Weight0.4 kg
Other
peak current120 A; for 30 ms
fastening methodVelcro fastener
ambient conditionFor storage, mounting and operation of batteries, the relevant DIN/VDE regulations or country-specific regulations (e.g. VDE 0510 Part 2/EN 50272-2) must be observed.
other informationSpecifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified)
protection class IPIP20
security informationSiemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement – and continuously maintain – a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7)
shipbuilding approvalYes
communication functionYes
charging current maximum3 A
output current rated value40 A
product component included2x Maxi Fuse 50 A/32 V
type of electrical connectionPlug-in terminals with screwed connection
output voltage at DC rated value24 V
design of short-circuit protection50A / 32V Maxi flat fuse
Environmental Product DeclarationYes

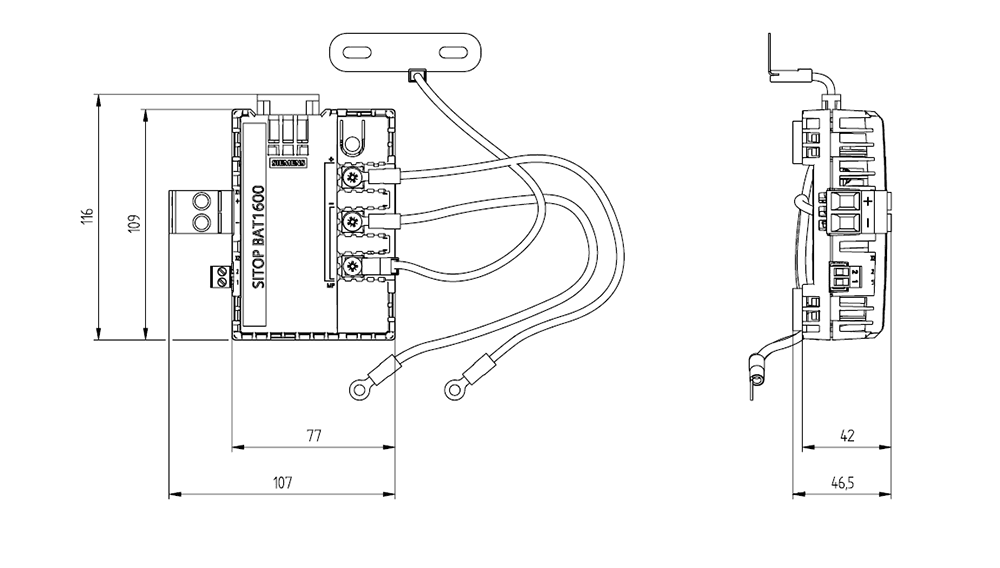

installation width × mounting height77 mm × 92 mm
operating resource protection classClass III
type of certification CB-certificateYes
width × height × depth of the enclosure77 × 109 × 42 mm
display version for normal operationThree-color: green = Buffer ready; yellow = Buffer endangered; red = Buffer not possible
output current in buffering mode maximum40 A
