LOGO! 12/24RCEO
Nomor Part: 6ED1052-2MD08-0BA2
Kategori
Logic module

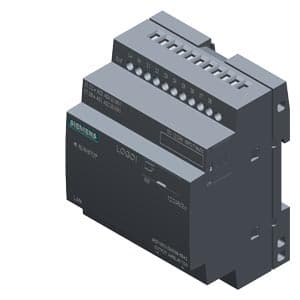

Siemens 6ED1052-2MD08-0BA2. LOGO! 12/24RCEO, logic module, power supply / I/O: 12/24 V DC/relay, 8 DI (4 AI)/4 DO, without display, memory 400 blocks, modularly expandable, Ethernet, integrated web server, data log, user-defined web pages, standard microSD card for LOGO! Soft Comfort V8.4 or higher, older projects executable cloud connection, MQTT in all LOGO! 8.4 basic units.
Spesifikasi

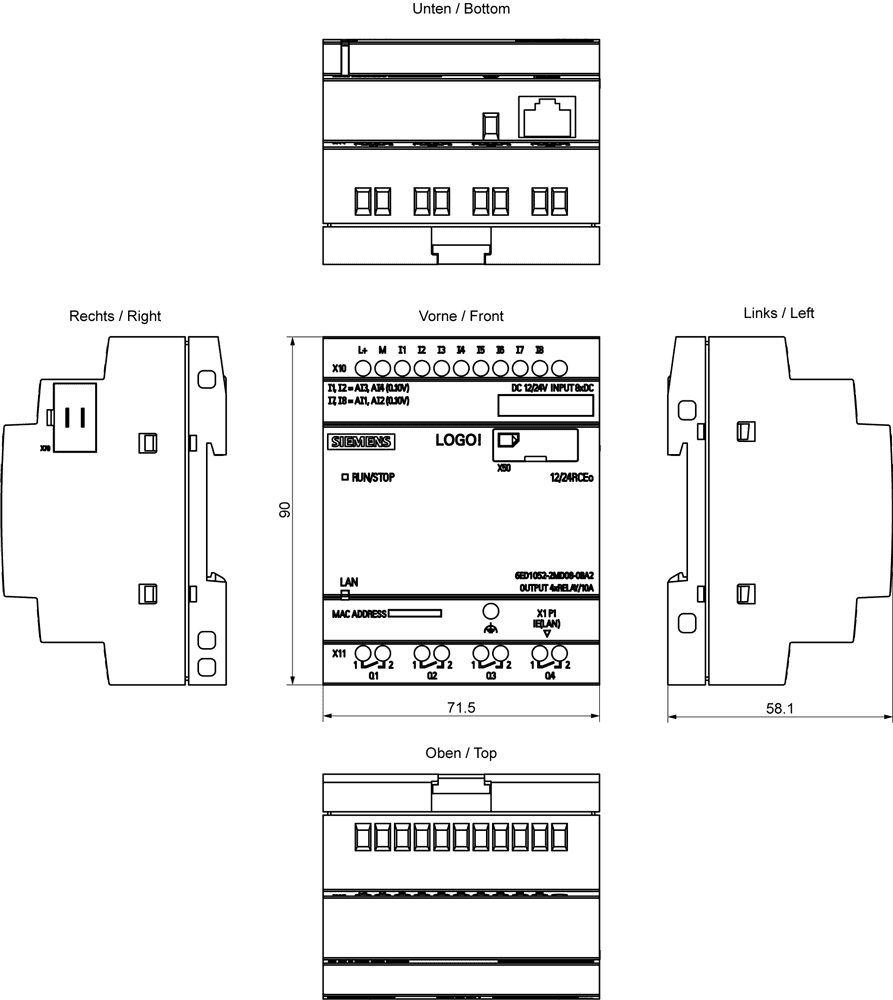

Dimensions
Width71.5 mm
Height90 mm
Depth58 mm
Other
CE markYes
Mountingon 35 mm DIN rail, 4 spacing units wide
FM approvalYes
UL approvalYes
CSA approvalNo; covered by UL cert
Marine approvalYes; in preparation
according to VDE 0631Yes
Short-circuit protectionNo; external fusing necessary
Siemens Eco Profile (SEP)Siemens EcoTech
— with inductive load, max.3 A
— with resistive load, max.10 A

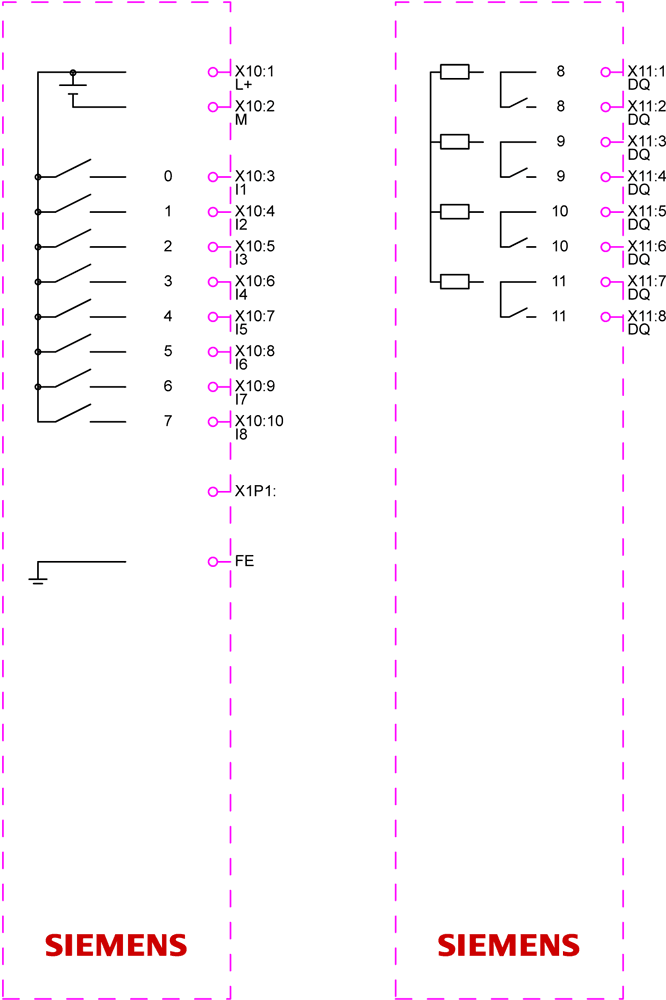

Number of digital inputs8; Of which 4 can be used in analog mode (0 to 10 V)
Number of digital outputs4; Relays
permissible range, lower limit (DC)10.8 V
permissible range, upper limit (DC)28.8 V
— global warming potential, (total) [CO2 eq]51.5 kg
developed in accordance with IEC 61131Yes
— global warming potential, (during operation) [CO2 eq]42.1 kg
— global warming potential, (during production) [CO2 eq]9.64 kg
— global warming potential, (after end of life cycle) [CO2 eq]-0.364 kg
