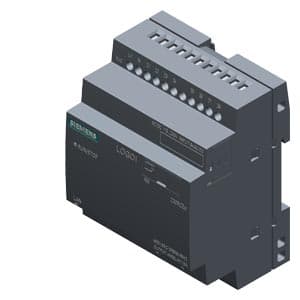

Name: LOGO! 230RCEo
Brand: Siemens
SKU: 6ED1052-2FB08-0BA2
Availability: InStock

Siemens 6ED1052-2FB08-0BA2. LOGO! 230RCEo, logic module, power supply / I/O: 115 V/230 V/relay, 8 DI/4 DO, without display, memory 400 blocks, modularly expandable, Ethernet, integrated web server, data log, user-defined web pages, standard microSD card for LOGO! Soft Comfort V8.4 or higher, older projects executable cloud connection, MQTT in all LOGO! 8.4 basic unit.

Spesifikasi

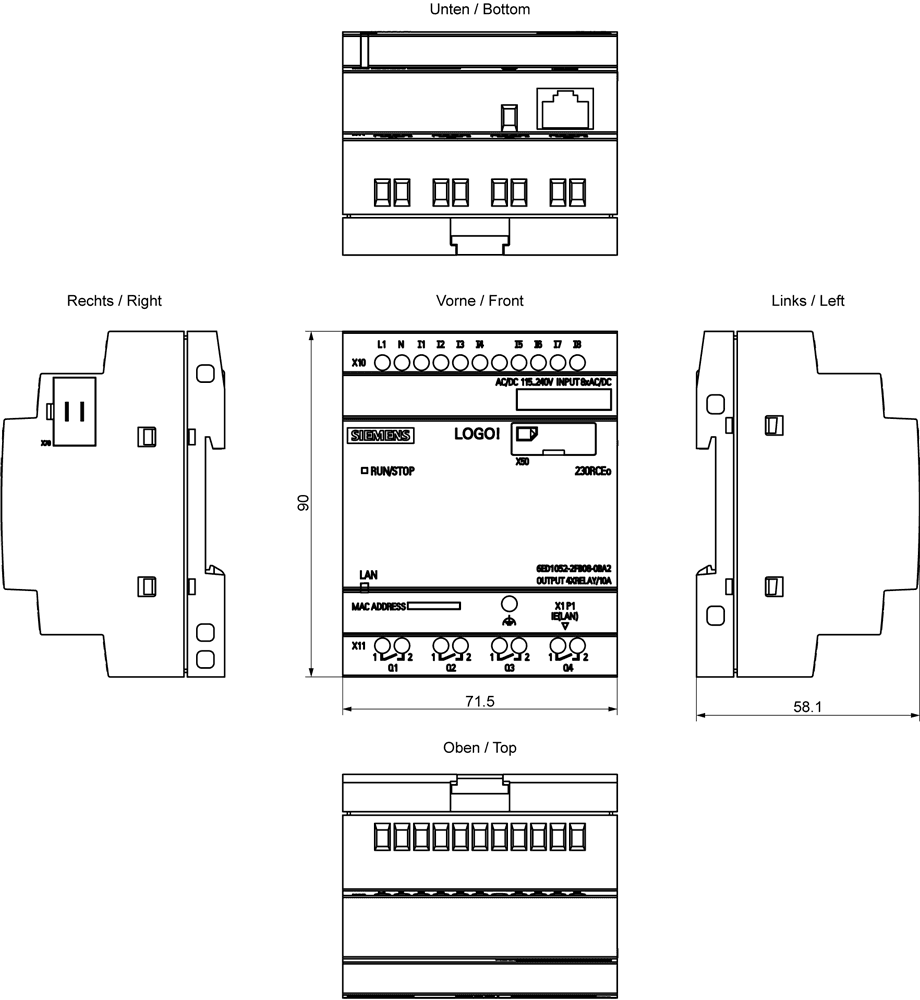

Dimensions

Width71.5 mm

Height90 mm

Depth58 mm

Other

CE markYes

Mountingon 35 mm DIN rail, 4 spacing units wide

FM approvalYes

UL approvalYes

CSA approvalNo; covered by UL cert

Marine approvalYes; in preparation

according to VDE 0631Yes

Short-circuit protectionNo; external fusing necessary

Siemens Eco Profile (SEP)Siemens EcoTech

— with inductive load, max.3 A

— with resistive load, max.10 A

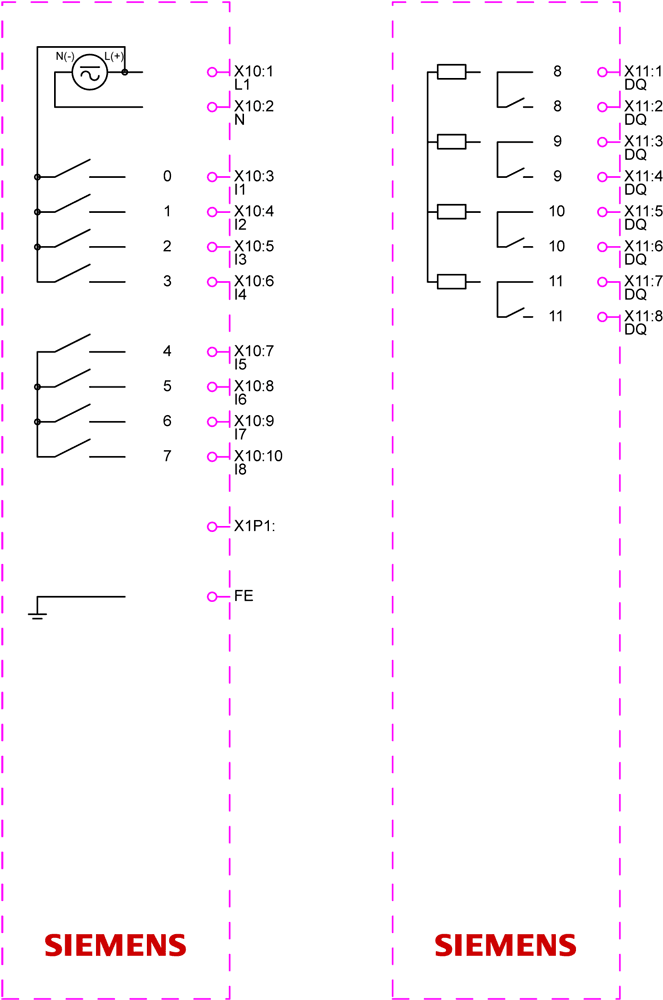

Number of digital inputs8

Number of digital outputs4; Relays

permissible range, lower limit (DC)100 V

permissible range, upper limit (DC)253 V

— global warming potential, (total) [CO2 eq]124 kg

developed in accordance with IEC 61131Yes

— global warming potential, (during operation) [CO2 eq]115 kg

— global warming potential, (during production) [CO2 eq]9.93 kg

— global warming potential, (after end of life cycle) [CO2 eq]-0.383 kg
