Aktif
SIMATIC ITC1500 V3 PRO
Nomor Part: 6AV6646-1BB15-0NA1
Kategori
Panel PC
Siemens 6AV6646-1BB15-0NA1. SIMATIC ITC1500 V3 PRO, industrial thin client, 15" widescreen TFT display, capacitive touch sensor, supported protocols: RDP, VNC, SmartServer HTML5 and others, neutral design, stand mounting.
Spesifikasi
Other
cULusYes
DesignPedestal mounting
CE markYes
IP (rear)IP65
PDF readerYes
USB memoryYes; USB storage medium can be connected
FM approvalYes
KC approvalYes
Web browserYes; HTML5, CSS
Built-in unitNo

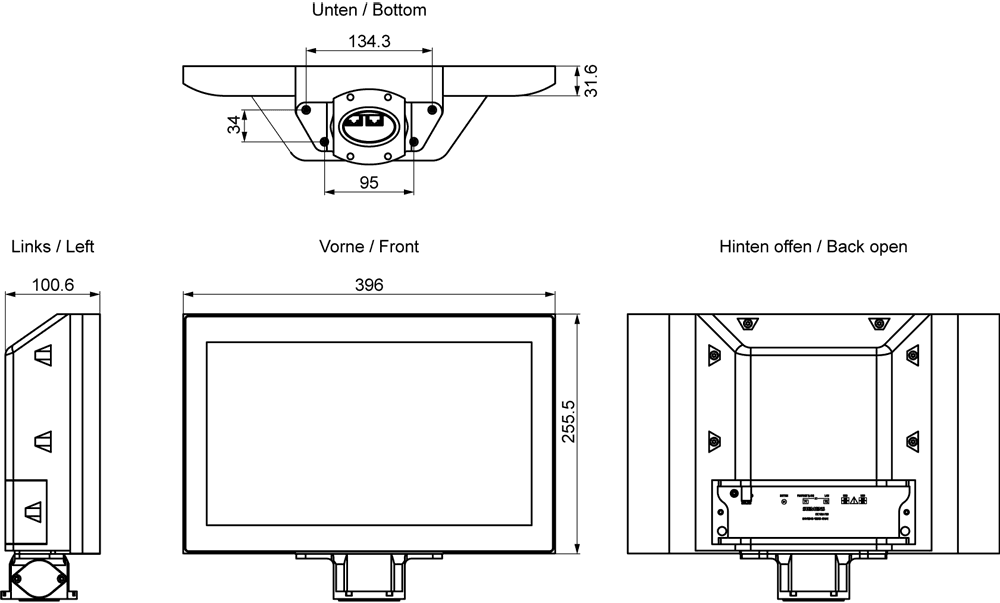

Display width344.2 mm
Display height193.5 mm
mounting depth101 mm; Without basic adapter
Rated value (DC)24 V
Stand mountingYes; Prepared for pedestal and extension components
IP (at the front)IP65
Screen diagonal15.6 in
Number of colors16 777 216
Design of displayTFT widescreen display, LED backlighting
EAC (formerly Gost-R)No; in preparation
RCM (formerly C-TICK)Yes
Active power input, typ.43.2 W
Type of supply voltage24 V DC
Current consumption, max.2.2 A
Height of housing front255 mm; Without basic adapter
Number of USB interfaces4; on rear
Product type designationITC1500 V3 PRO
Weight (without packaging)6.3 kg
Starting current inrush I²t0.5 A²·s
Width of the housing front396 mm
Connection for keyboard/mouseUSB
Current consumption (rated value)1.8 A
permissible range, lower limit (DC)19.2 V
permissible range, upper limit (DC)28.8 V
Number of industrial Ethernet interfaces2; 2 ports (switch)
maximum permitted forward tilt angle from vertical35°
maximum permitted backward tilt angle from vertical35°
