cULusYes
DesignBuilt-in unit
CE markYes
PDF readerYes
USB memoryYes; USB storage medium can be connected
FM approvalYes
KC approvalYes
Web browserYes; HTML5, CSS
Built-in unitYes

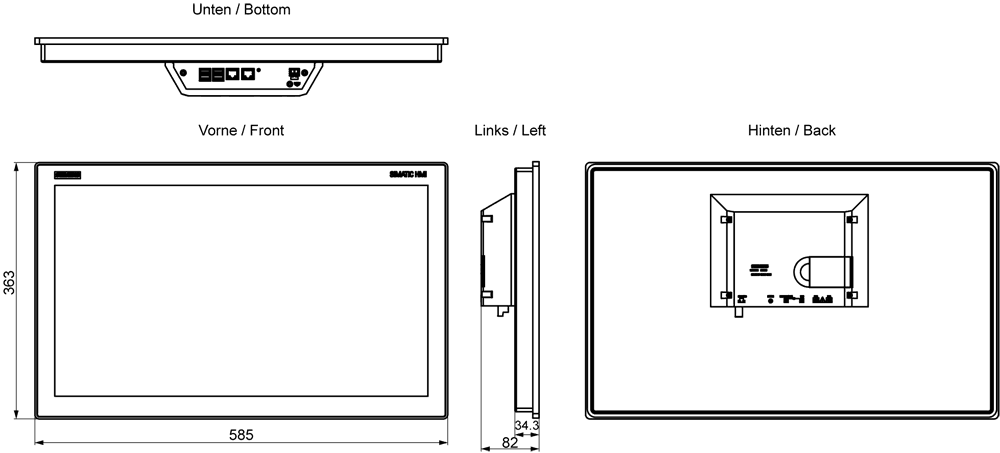

Display width527 mm
Display height296.5 mm
Front mountingYes
mounting depth73 mm
Rated value (DC)24 V
IP (at the front)IP65
Screen diagonal23.8 in
Number of colors16 777 216
Design of displayTFT widescreen display, LED backlighting
EAC (formerly Gost-R)No; in preparation
RCM (formerly C-TICK)Yes
Mounting cutout, width569 mm
Active power input, typ.50.4 W
Mounting cutout, height347 mm
Type of supply voltageDC
Current consumption, max.2.6 A
Height of housing front363 mm
Number of USB interfaces4; on rear

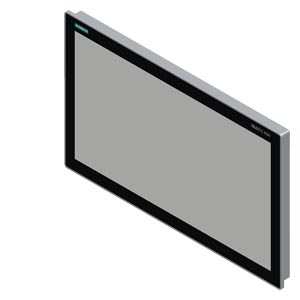

Product type designationITC2400 V3
Weight (without packaging)8.7 kg
Starting current inrush I²t0.5 A²·s
Width of the housing front585 mm
Connection for keyboard/mouseUSB
Current consumption (rated value)2.1 A
permissible range, lower limit (DC)19.2 V
permissible range, upper limit (DC)28.8 V
Number of industrial Ethernet interfaces2; 2 ports (switch)
maximum permitted forward tilt angle from vertical35°
maximum permitted backward tilt angle from vertical35°
