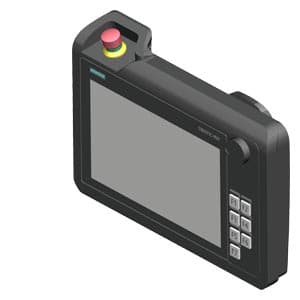

SIMATIC HMI IWP10F Mobile WebClient
Nomor Part: 6AV2145-6KM00-0AA0
Kategori
Mobile panel
Siemens 6AV2145-6KM00-0AA0. SIMATIC HMI IWP10F Mobile WebClient, 10.0" TFT display, 1280x800 pixels, 16 million colors, multi-touch, 7 function keys, handwheel, PROFINET/Industrial Ethernet interface, USB, acknowledgment button, EMERGENCY STOP button -- for the lower performance range such as LOGO or PLC, only suitable for Unified with restrictions!.
Spesifikasi
Other
CCCNo
RAMYes
— F1...Fx7
cULusYes
FlashYes
CE markYes
PROFINETYes
PROFIsafeNo
USB memoryYes; USB storage medium can be connected
FM approvalNo
KC approvalNo
Color displayYes
Processor typeIntel Atom E3930, 800 MHz, 2 cores
Rated value (DC)24 V
Marine approvalNo
Screen diagonal10 in
Design of display10" TFT multi-touch
EAC (formerly Gost-R)No
RCM (formerly C-TICK)Yes
Active power input, typ.24 W
Type of supply voltageDC
Number of SD card slots0
— Number of function keys7
Number of USB interfaces1
Product type designationIWP10F Mobile WebClient
Weight (without packaging)1.5 kg
Number of wireless interfaces0
Suitable for safety functionsYes
Current consumption (rated value)0.98 A
permissible range, lower limit (DC)20.4 V
permissible range, upper limit (DC)28.8 V
Supports protocol for PROFINET IOYes
— Number of function keys with LEDs7
Number of industrial Ethernet interfaces1
