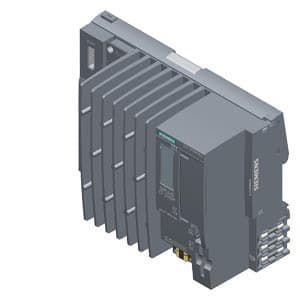

SIPLUS ET 200SP CPU 1515SP PC2 spare based on 6ES7677-2DB40-0AA0 with conformal coating
Nomor Part: 6AG1677-2DB40-2AA0
Kategori
Fieldbus, decentr. periphery - basic appliance
Siemens 6AG1677-2DB40-2AA0. SIPLUS ET 200SP CPU 1515SP PC2 spare based on 6ES7677-2DB40-0AA0 with conformal coating, -40…+60 °C, spare part, 8 GB RAM, without CFast, interfaces: 1x slot CFast, 1x slot SD/MMC, 1x connection for ET 200SP BusAdapter PROFINET, 1x 10/100/1000 Mbps Ethernet 2x USB 3.0; 2x USB 2.0, 1x display port.
Spesifikasi

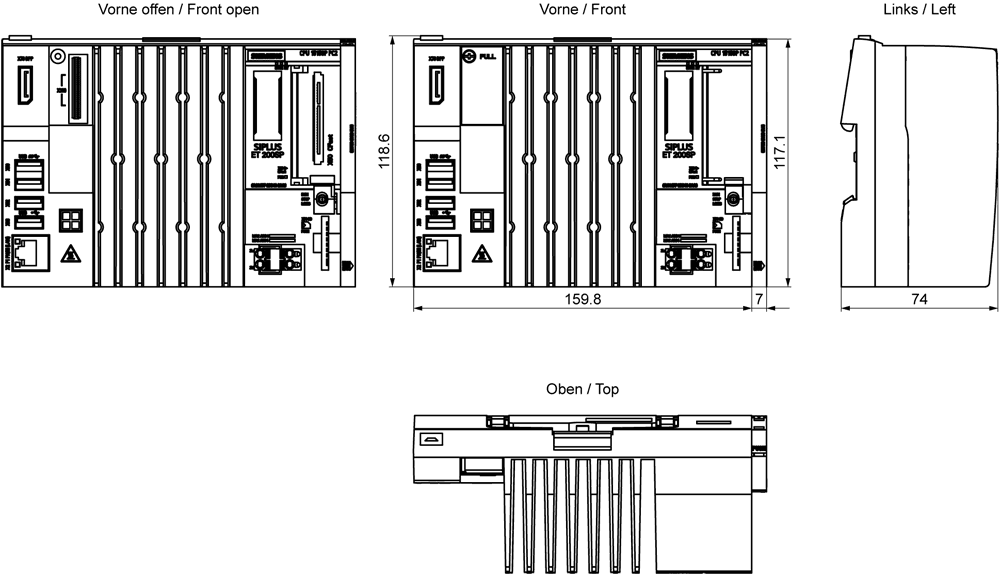

Dimensions
Width160 mm
Height117 mm
Depth75 mm
Other
I²t0.426 A²·s; with starting current inrush
SD cardOptionally for additional mass storage
Main memory8 GB RAM
via datasetYes
Weight, approx.0.83 kg
Interface typePROFINET
Power loss, typ.16 W
Processor typeIntel Atom E3940, 1.6 GHz, 4 cores
Rated value (DC)24 V
Type of memoryDDR3L
— Data length, max.64 kbyte
CFast memory cardNo
Mode selector switch1
— Transmission rate, max.1 000 Mbit/s
Active power input, max.43 W; incl. ET 200SP modules and using USB
Current consumption, max.2.9 A
Integrated power supplyYes
Number of USB interfaces4; 2x USB 2.0, 2x USB 3.0 on front side
Product type designationCPU 1515SP PC2
Number of RS 485 interfaces1; Via CM DP module
Reverse polarity protectionYes
SIMATIC memory card requiredNo
Number of PROFIBUS interfaces1; Via CM DP module
Number of PROFINET interfaces1; via BusAdapter
— Industrial Ethernet status LEDNo
Current consumption (rated value)1.8 A; Full processor load, incl. ET 200SP modules and using USB
permissible range, lower limit (DC)19.2 V
permissible range, upper limit (DC)28.8 V
Infeed power to the backplane bus8.75 W
— global warming potential, (total) [CO2 eq]432 kg
Number of industrial Ethernet interfaces2
Current consumption (in no-load operation), typ.0.5 A
— global warming potential, (during operation) [CO2 eq]365 kg
— global warming potential, (during production) [CO2 eq]73.8 kg
— Against chemically active substances acc. to EN 60654-4Yes; Class 3 (excluding trichlorethylene)
— global warming potential, (after end of life cycle) [CO2 eq]-6.71 kg
— to chemically active substances according to EN 60721-3-3Yes; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to chemically active substances according to EN 60721-3-6Yes; Class 6C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to biologically active substances according to EN 60721-3-3Yes; Class 3B2 mold, fungus and dry rot spores (with the exception of fauna); Class 3B3 on request
— to biologically active substances according to EN 60721-3-6Yes; Class 6B2 mold, fungal and dry rot spores (excluding fauna)
— to mechanically active substances according to EN 60721-3-3Yes; Class 3S4 incl. sand, dust, *
— to mechanically active substances according to EN 60721-3-6Yes; Class 6S3 incl. sand, dust; *
— Resistant to commercially available coolants and lubricantsYes; Incl. diesel and oil droplets in the air
— Against mechanical environmental conditions acc. to EN 60721-3-3Yes; Class 3M8 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0)
— Against mechanical environmental conditions acc. to EN 60721-3-6Yes; Class 6M4 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0)
— Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04Yes; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) and level LB3 (oil)
— Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04* The supplied plug covers must remain in place over the unused interfaces during operation!
