MTBF83.72 a
designcompact
transfer rate10, 100 Mbit/s
warranty period5 a
product brand nameSIPLUS
protection class IPIP30
security informationSiemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement – and continuously maintain – a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7)

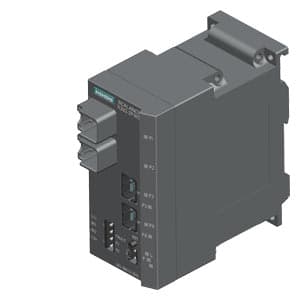

product type designationX202-2P IRT
PROFINET conformity classC
Environmental Product DeclarationYes
cascading in cases of star topologyany (depending only on signal propagation time)
type of voltage / 1 / of the supply voltageDC
network load class / according to PROFINETII
product function / is supported / identification linkYes; acc. to IEC 61406-1:2022
environmental category / according to IEC 60721 / note* The supplied plug covers must remain in place on the unused interfaces during operation!
protocol / is supported / Media Redundancy Protocol (MRP)Yes
type of test / of the coating / according to MIL-I-46058CYes; coating discoloration during service life possible
installation altitude / at height above sea level / maximum5000 m
resistance to air pollution / conformity according to ANSI/ISA-71.04Yes; G3
chemical resistance / to commercially available cooling lubricantsYes; incl. airborne diesel and oil droplets
coating / for equipped printed circuit board / according to EN 61086Yes; Class 2 for high availability
type of coating / protection against pollution according to EN 60664-3Yes; protection of the type 1
ambient temperature / in horizontal mounting position / during operation-40 ... +60 °C
number of 100 Mbit/s SC-RJ-ports / for POF FOC / with push-pull connection system2
cascading in the case of a redundant ring / at reconfiguration time of <\~0.3\~s50
ambient condition / relating to ambient temperature - air pressure - installation altitudeTmin ... Tmax at 1 140 hPa ... 795 hPa (-1 000 m ... +2 000 m) // Tmin ... (Tmax - 10 K) at 795 hPa ... 658 hPa (+2 000 m ... +3 500 m) // Tmin ... (Tmax - 20 K) at 658 hPa ... 540 hPa (+3 500 m ... +5 000 m)
product conformity / of the coating / Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830AYes; conformal coating, class A
