Aktif
DELTA style platinum metallic SCHUKO
Nomor Part: 5UB1367-1
Kategori
Socket outlet
Siemens 5UB1367-1. DELTA style platinum metallic SCHUKO, with grounding pin, with child protection, 2-pole according to CEE 7.
Spesifikasi
Mechanical
Net Weight93 g

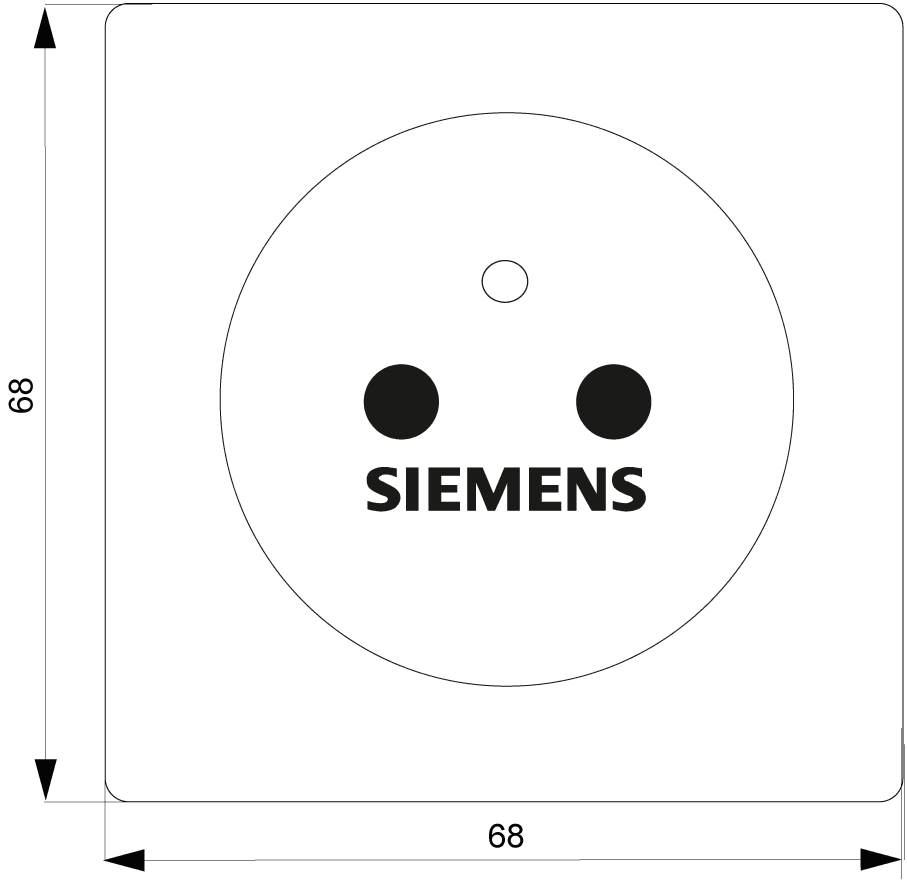

Dimensions
Width70 mm
Height70 mm
Depth45 mm
Other
colorplatinum metallic
materialthermoplastic
cover versionsolid plate
mounting typefixing with claw and screw
number of units1
fastening methodmiscellaneous
product brand nameDELTA
surface processingothers
product designationSocket outlet
protection class IPIP20
design of the productprotective ground contact pin
design of the phase tapNo
marking of socket outletwithout imprint
product feature lockableNo
RAL color number (similar)9 007
material of the enclosureplastic
product feature halogen-freeYes
product feature transparentNo
number of sockets switchable0
operating voltage rated value250 V
type of electrical connectionplug terminal
operational current rated value16 A
arrangement of contacts diagonalNo
supply voltage frequency rated value50 Hz
design of the special power supply unitwithout special current supply
design of the socket according to VDE 0620 for severe conditionsNo
