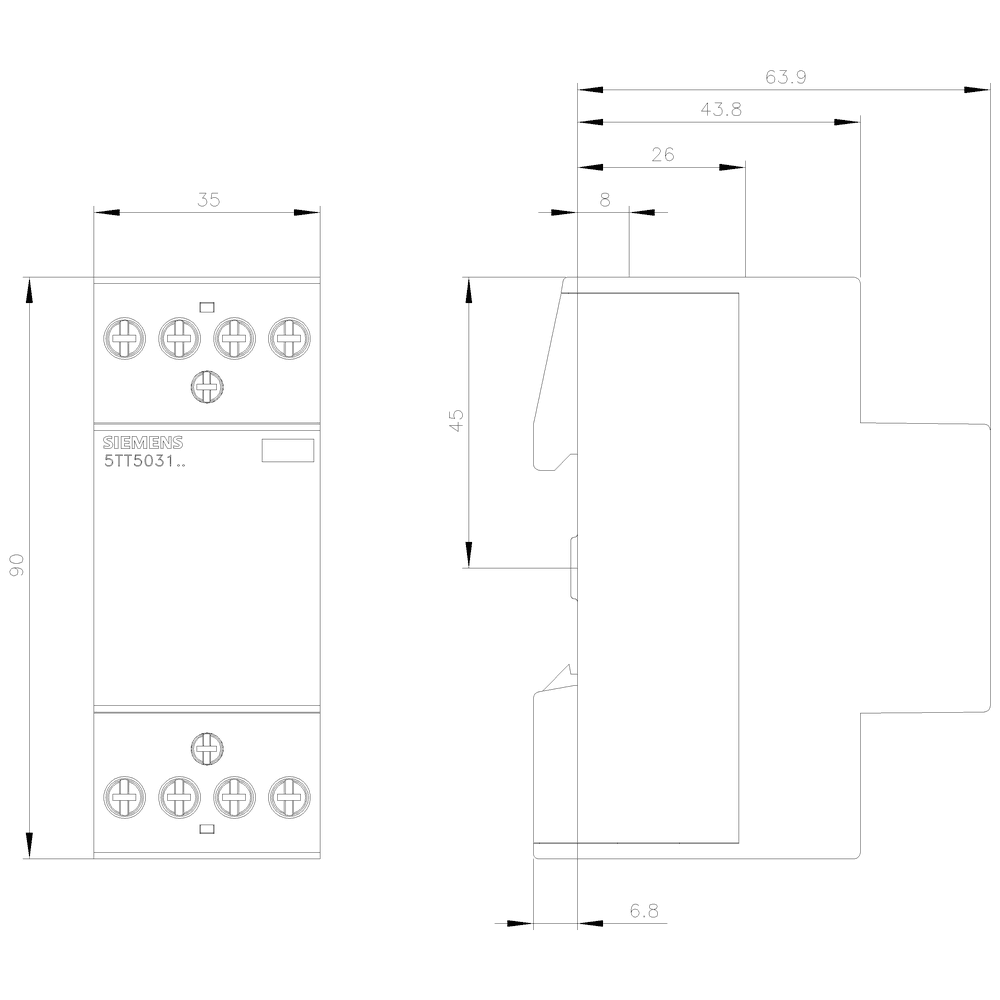

installation depth70 mm
product brand nameSENTRON
product designationInstallation contactor
protection class IPIP20

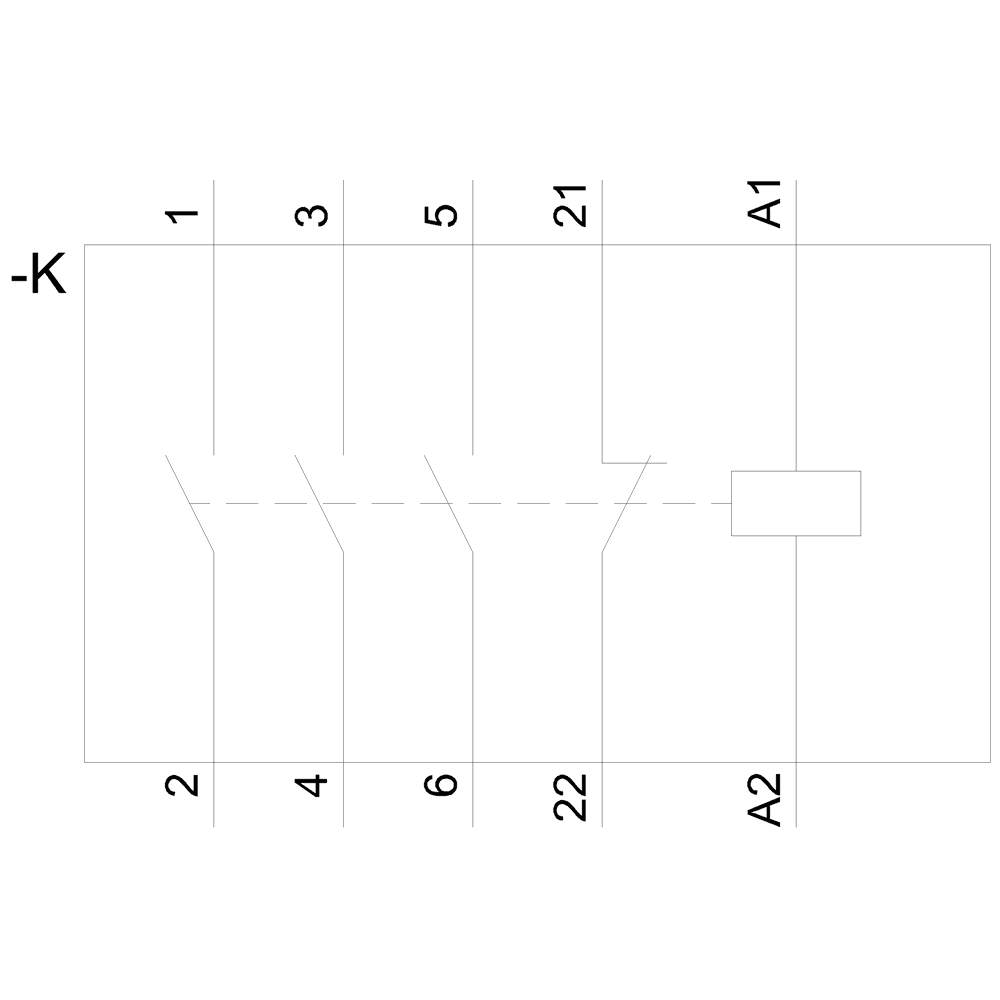

design of the product3 NO contacts 1 NC contact
number of NC contacts1
number of NO contacts3
installation or assembly noteprovision must be made for spacers to ensure heat dissipation
number of modular width units2
relative ON period of magnet coil100 %
type of voltage of the operating voltageAC
product component slide for manual operationNo
product extension installable supplementary devicesYes
type of voltage of the operating voltage for actuationAC/DC
power loss [W] for rated value of the current at AC in hot operating state per pole2.2 W
