switch disconnector
Nomor Part: 5TE8118
Kategori
Main switch for distribution board

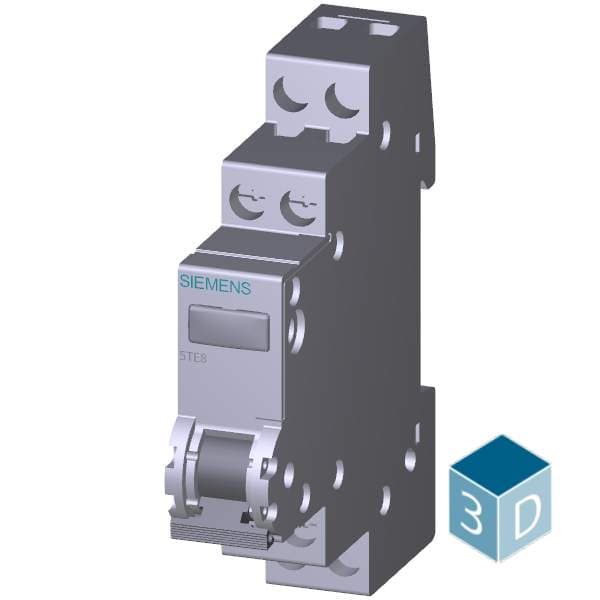

Siemens 5TE8118. switch disconnector, on-off switch 20 A 3 NO + N with auxiliary switch 1 NO + 1 NC.
Spesifikasi
Mechanical
Net Weight141.5 g

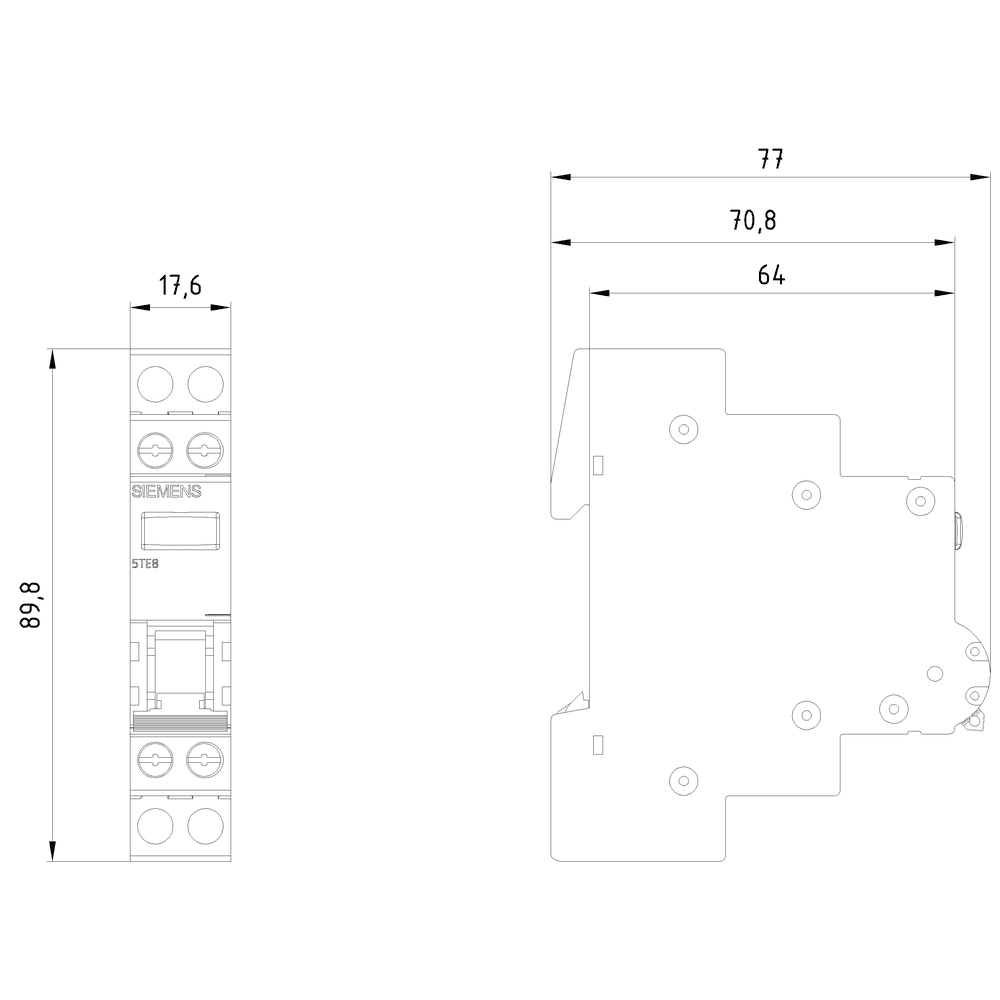

Dimensions
Height90 mm
Depth64 mm
Other
number of poles1
installation depth70 mm
product brand nameSENTRON
product designationOn-off switch
protection class IPother
design of the product3 NO + N
number of NO contacts3
short-circuit current rating10 kA
number of modular width units1.5
operating voltage rated value400 V
product component signal lampNo
operational current rated value20 A
design of the switching functionon-off switch
switching capacity current rated value0.06 kA
value range of the operating frequency50/60 Hz
type of voltage of the operating voltageAC
ambient temperature during storage minimum-25 °C
product function positive opening (acc. to DIN VDE 0113)No
power loss [W] for rated value of the current at AC in hot operating state per pole0.7 W
