SCHUKO socket outlet 16 A yellow according to DIN VDE 0620 for installation in distribution boards
Nomor Part: 5TE6810
Kategori
Socket outlet for distribution board

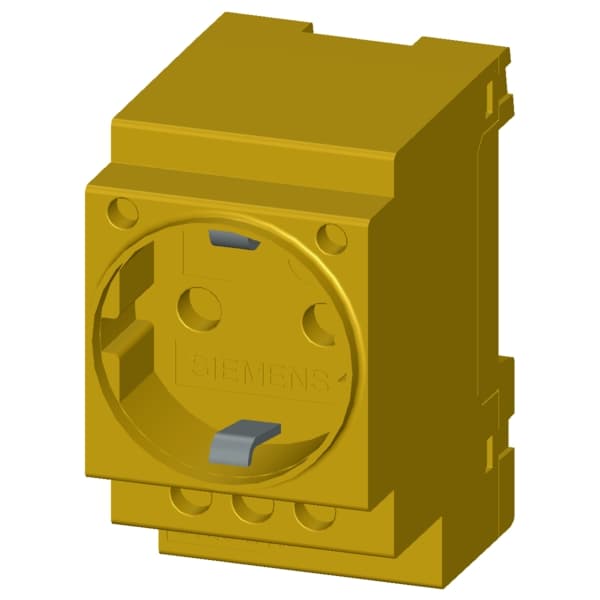

Siemens 5TE6810. SCHUKO socket outlet 16 A yellow according to DIN VDE 0620 for installation in distribution boards.
Spesifikasi
Mechanical
Net Weight85 g

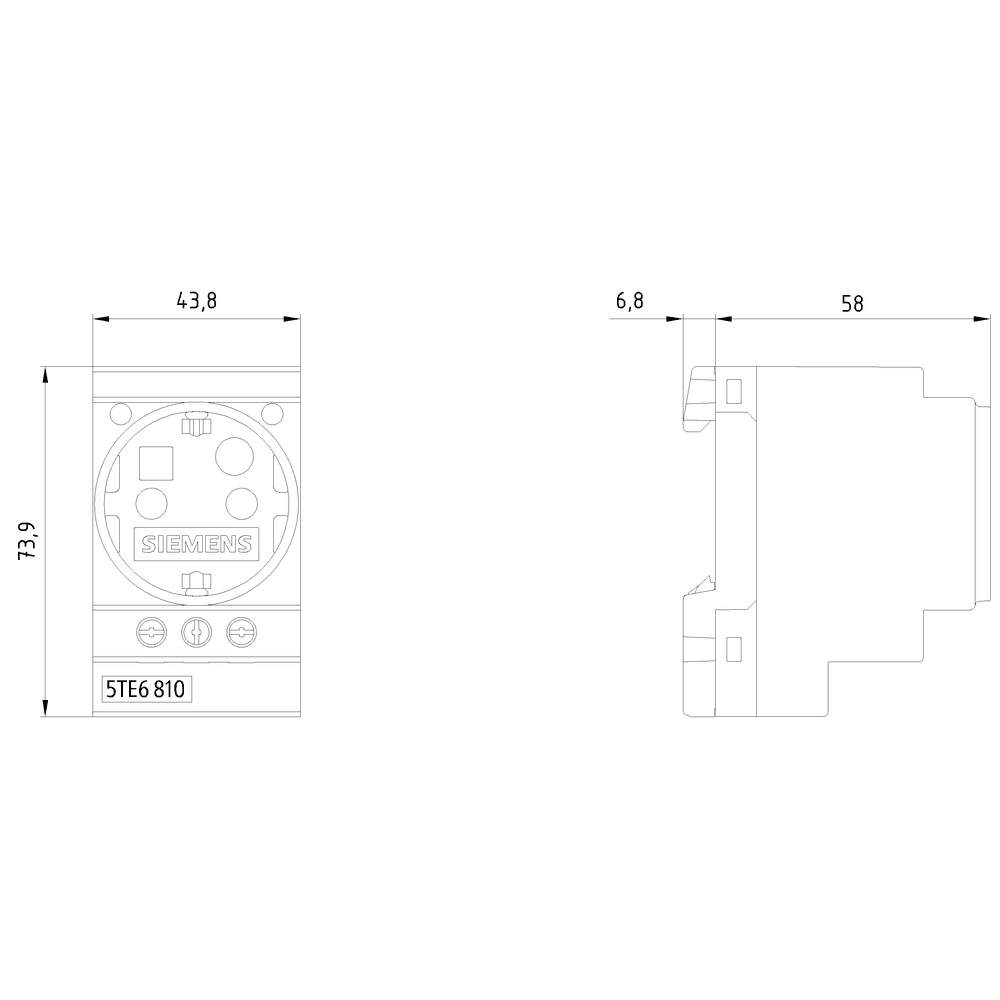

Dimensions
Width44 mm
Height58 mm
Depth75 mm
Other
coloryellow
materialThermoplastic
appearanceMatt
mounting typeLatching mounting
stripped length10 mm
fastening methodDIN rail
RAL color number1 018
number of sockets1
product brand nameSENTRON
product designationSCHUKO socket outlet
protection class IPIP20
product type designation5TE6
material of the enclosureplastic
product feature halogen-freeYes
number of modular width units2.5
type of electrical connectionScrew terminal
operational current rated value16 A
arrangement of contacts diagonalNo
supply voltage frequency rated value50 Hz
reference code according to IEC 81346-2XD
design of the special power supply unitWithout special power supply
number of terminals with cross-head screw1
ambient temperature during operation minimum-10 °C
tightening torque with screw-type terminals maximum1.2 N·m
connectable conductor cross-section finely stranded with core end processing minimum0.5 mm²
