Socket outlet 15A/125V AC according to IEC 60083
Nomor Part: 5TE6804
Kategori
Socket outlet for distribution board

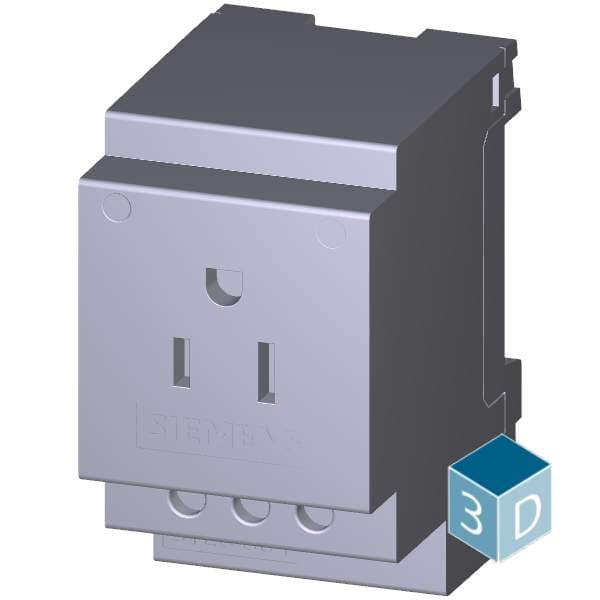

Siemens 5TE6804. Socket outlet 15A/125V AC according to IEC 60083, UL version Type NEMA, for installation in distribution boards.
Spesifikasi
Mechanical
Net Weight87 g

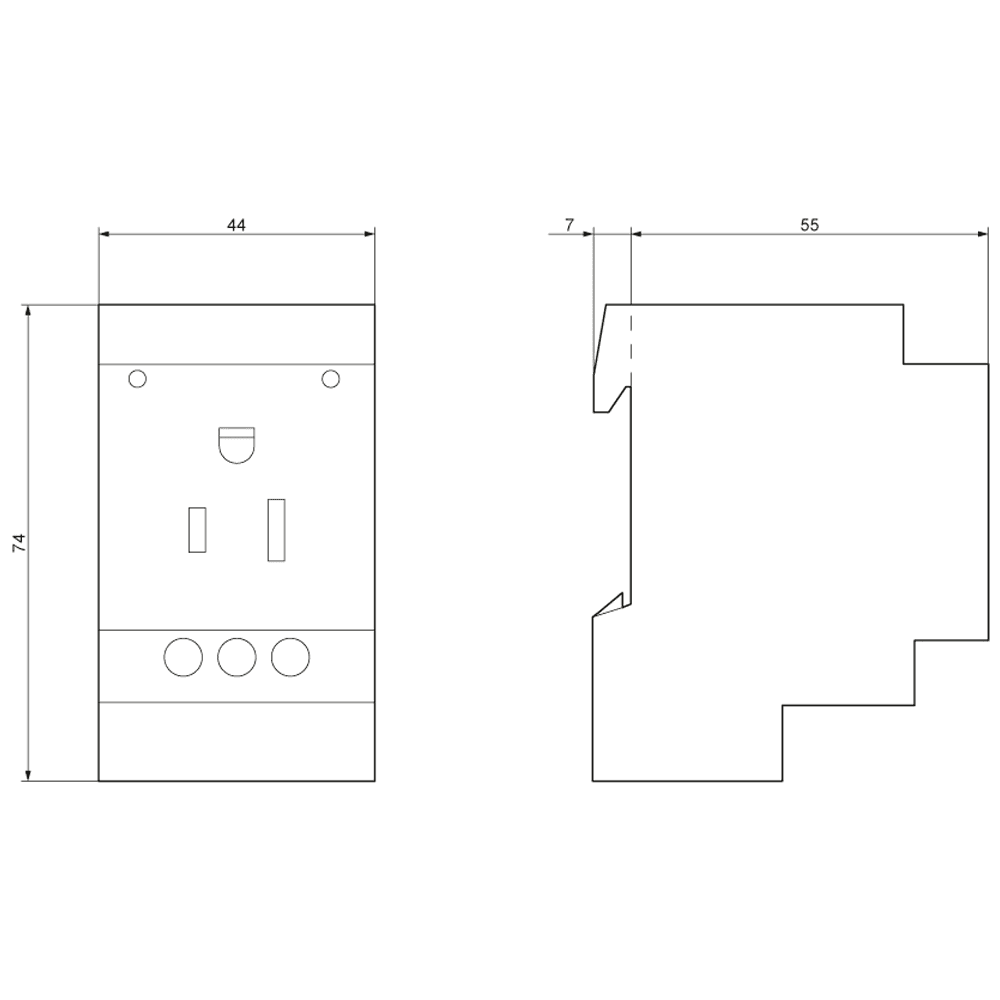

Dimensions
Width44 mm
Height55.5 mm
Depth75 mm
Other
colorgrey
materialThermoplastic
appearanceMatt
mounting typeLatching mounting
stripped length10 mm
fastening methodDIN rail
RAL color number7 035
number of sockets1
installation depth70 mm
product brand nameSENTRON
product designationSocket outlet
protection class IPIP20
product type designation5TE6
material of the enclosureplastic
product feature halogen-freeYes
number of modular width units2.5
type of electrical connectionScrew terminal
operational current rated value15 A
arrangement of contacts diagonalNo
supply voltage frequency rated value60 Hz
reference code according to IEC 81346-2XD
design of the special power supply unitWithout special power supply
number of terminals with cross-head screw1
ambient temperature during operation minimum-10 °C
tightening torque with screw-type terminals maximum1.2 N·m
connectable conductor cross-section finely stranded with core end processing minimum0.5 mm²
