DELTA switch device insert FM
Nomor Part: 5TA2154
Kategori
Venetian blind switch/-push button
Siemens 5TA2154. DELTA switch device insert FM, shutter switch 16 A 250 V Mechanically interlocked.
Spesifikasi
Mechanical
Net Weight66 g

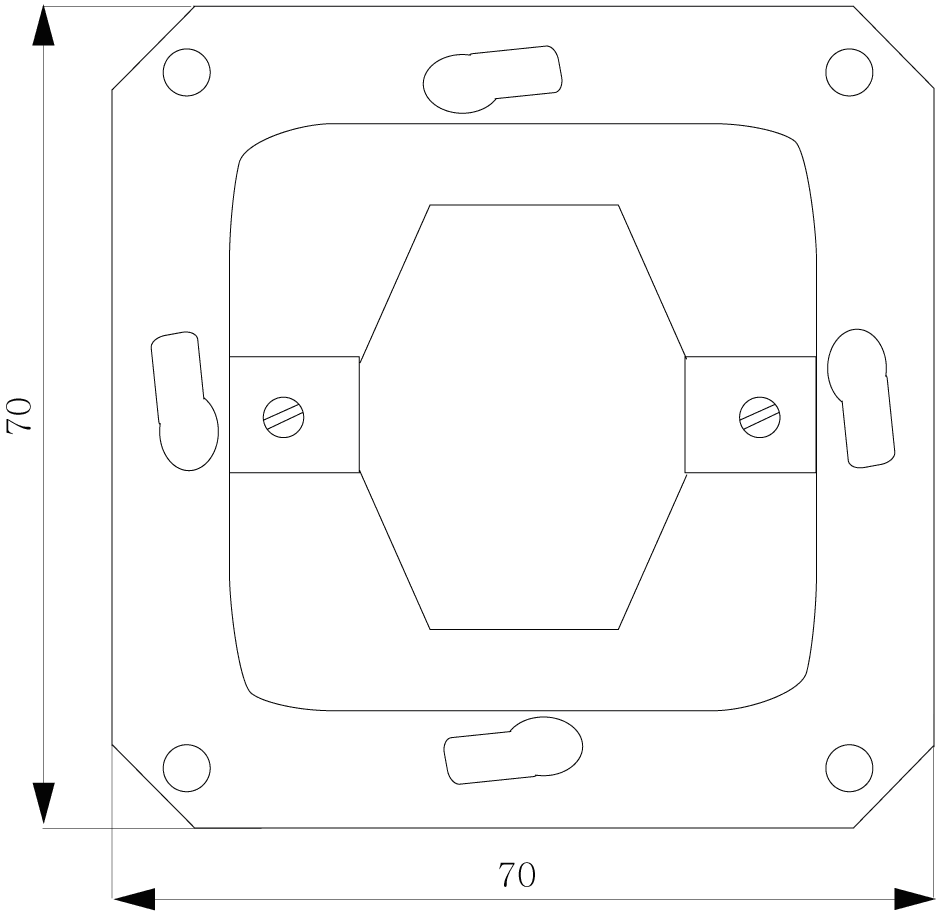

Dimensions
Height70 mm
Other
colormiscellaneous
materialothers
appearancenot applicable
mounting typeflush mounting
number of keys2
type of switchswitch 2-pole
number of poles2
fastening methodclaw/screw mounting
product brand nameDELTA
product designationShutter/blind pushbutton
protection class IPIP20
type of compositionbasic element
design of the product16 A 250 V mechanically locked
design of the surfaceothers
material of the enclosureothers
product feature interlockYes
switching capacity current10 A
product feature halogen-freeYes
product feature transparentNo
operating voltage rated value250 V
design of the actuating elementrocker
operational current rated value10 A
product component labeling fieldNo
