RCBO
Nomor Part: 5SU1324-6FA40
Kategori
Earth leakage circuit breaker

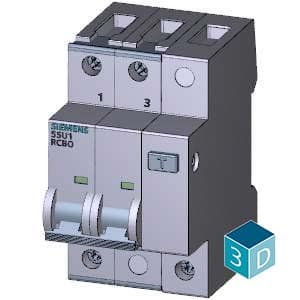

Siemens 5SU1324-6FA40. RCBO, 10 kA, 2P, type A, 30 mA, B char., In: 40 A, Un AC: 230 V.
Spesifikasi
Mechanical
Net Weight430 g

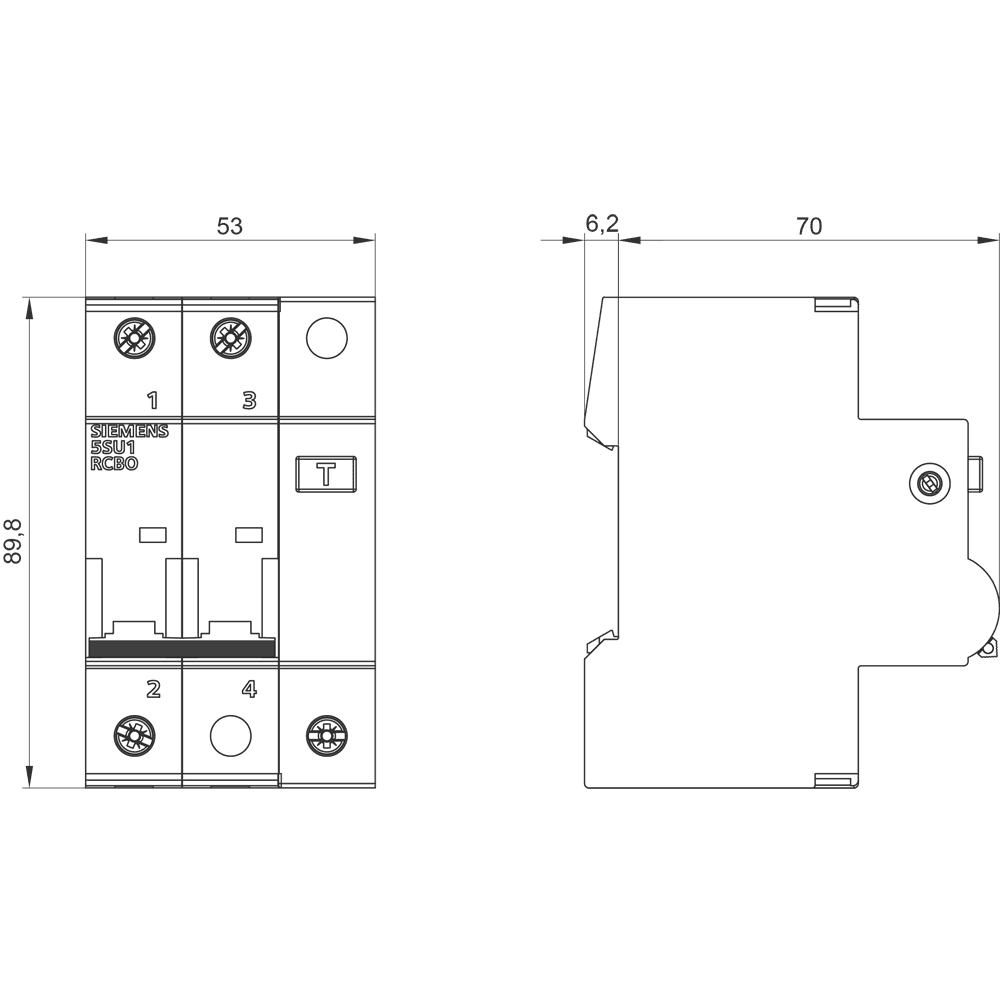

Dimensions
Width54 mm
Height90 mm
Depth77 mm
Other
design of pole2P
number of poles2
mounting positionany
installation depth70 mm
product brand nameSENTRON
degree of pollution2
operating frequency50 Hz
product designationRCBO
protection class IPIP20, if the distribution board is installed, with connected conductors
— at 30 °C rated value40 A
— at 40 °C rated value37.6 A
— at 45 °C rated value36.4 A
— at 50 °C rated value34.8 A
— at 55 °C rated value32.4 A
— at 60 °C rated value32.4 A
— at 65 °C rated value30.8 A
— at 70 °C rated value29.2 A
overvoltage category3
design of the productInstantaneous
residual current typeA
weight with packaging430 g
energy limitation class3
product feature halogen-freeYes
product feature silicon-freeYes
number of modular width units3
position of power supply cordEither top or bottom
tripping characteristic classB
number of poles with protection2
product feature touch protectionYes
insulation voltage (Ui) rated value264 V
surge current resistance at (8/20) µs1 kA
tripping fault current rated value30 mA
supply voltage frequency rated value50 Hz
surge voltage resistance rated value4 000 V
influence of the surrounding temperatureMax. 95% humidity
type of voltage of the operating voltageAC
product component neutral conductor switchingYes
mechanical service life (operating cycles) typical10 000
rated residual switching capacity (IΔm) according to IEC 61009-110 kA
number of test cycles for environmental testing according to IEC 60068-2-3028
short-circuit current breaking capacity (Icn) according to EN 61009-1 rated value10 kA
