design of pole1P+N
number of poles2
mounting positionany
installation depth70 mm
product brand nameSENTRON
degree of pollution2
operating frequency50 Hz

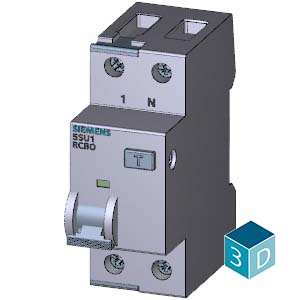

product designationRCBO
protection class IPIP20, if the distribution board is installed, with connected conductors
— at 30 °C rated value10 A
— at 40 °C rated value9.5 A
— at 45 °C rated value9.3 A
— at 50 °C rated value9 A
— at 55 °C rated value8.7 A
— at 60 °C rated value8.5 A
— at 65 °C rated value8.2 A
— at 70 °C rated value8 A
overvoltage category3
design of the productInstantaneous
residual current typeA
weight with packaging282 g
energy limitation class3
product feature halogen-freeYes
product feature silicon-freeYes
number of modular width units2
position of power supply cordEither top or bottom
tripping characteristic classC
number of poles with protection1
product feature touch protectionYes
insulation voltage (Ui) rated value264 V
surge current resistance at (8/20) µs1 kA
tripping fault current rated value10 mA
supply voltage frequency rated value50 Hz
surge voltage resistance rated value4 000 V
influence of the surrounding temperatureMax. 95% humidity
type of voltage of the operating voltageAC
product component neutral conductor switchingYes
mechanical service life (operating cycles) typical10 000
rated residual switching capacity (IΔm) according to IEC 61009-110 kA
number of test cycles for environmental testing according to IEC 60068-2-3028
short-circuit current breaking capacity (Icn) according to EN 61009-1 rated value10 kA
