Aktif
Pin busbar
Nomor Part: 5ST3613
Kategori
Phase busbar

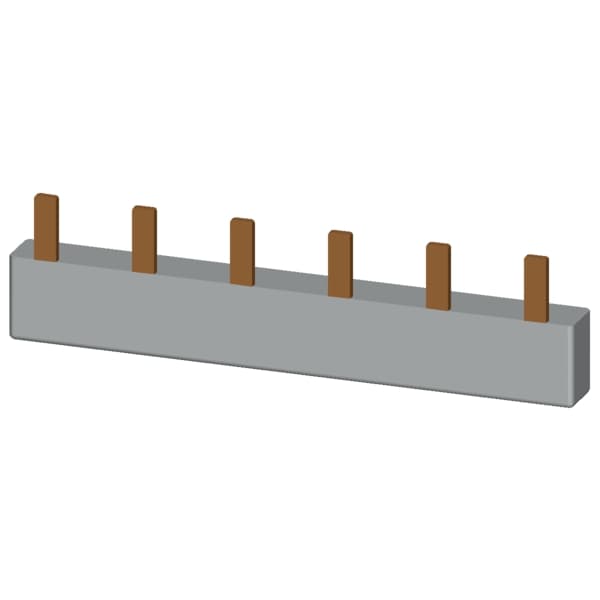

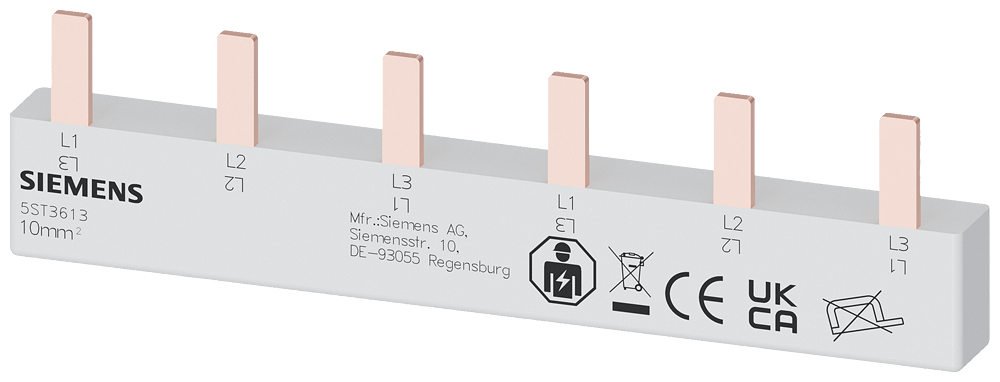

Siemens 5ST3613. Pin busbar, 10 mm2 connection: 2x 3-phase touch-safe.
Spesifikasi
Mechanical
Net Weight33 g

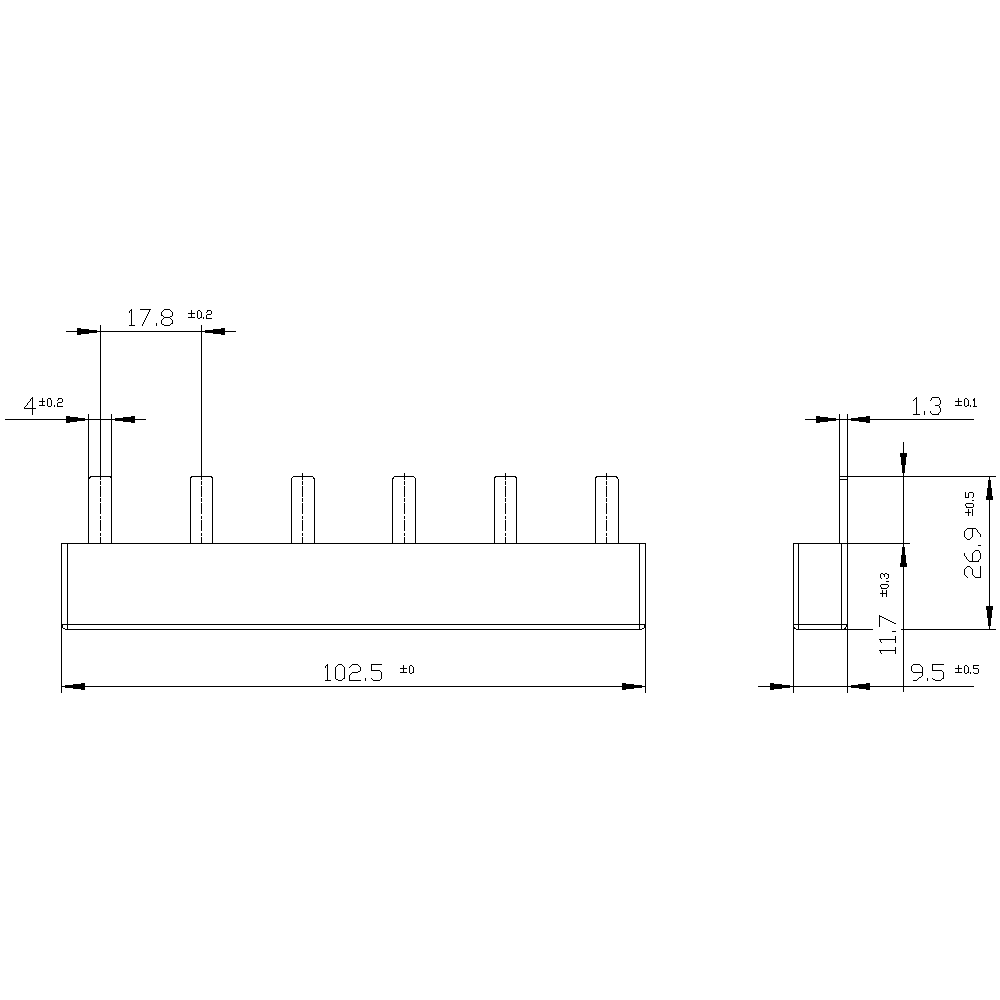

Dimensions
Width9 mm
Height15 mm
Other
colorlight grey
length102 mm
cross-section10 mm²
module width18 mm
phase number3
compatibilityfor 2 MCBs 3P
design of pole3 poles
product brand nameSENTRON
product designationPin busbar
design of the product2x 3PH
design of the phase tapL1/L2/L3
product feature insulatedYes
angle of the pin of busbar0°
number of modular width units6
type of electrical connectionPin
operational current rated value63 A
number of devices suitable for fitting2
suitability for interaction devices with N conductorNo
product feature attachable arc fault detection deviceNo
suitability for interaction devices with auxiliary switchNo
