Aktif
Pin busbar
Nomor Part: 5ST3608
Kategori
Phase busbar

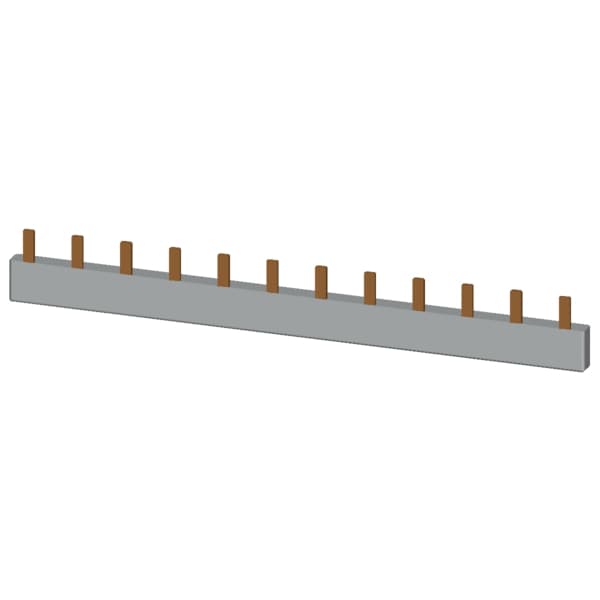

Siemens 5ST3608. Pin busbar, 10 mm2 connection: 6x 2-phase touch-safe.
Spesifikasi
Mechanical
Net Weight61 g

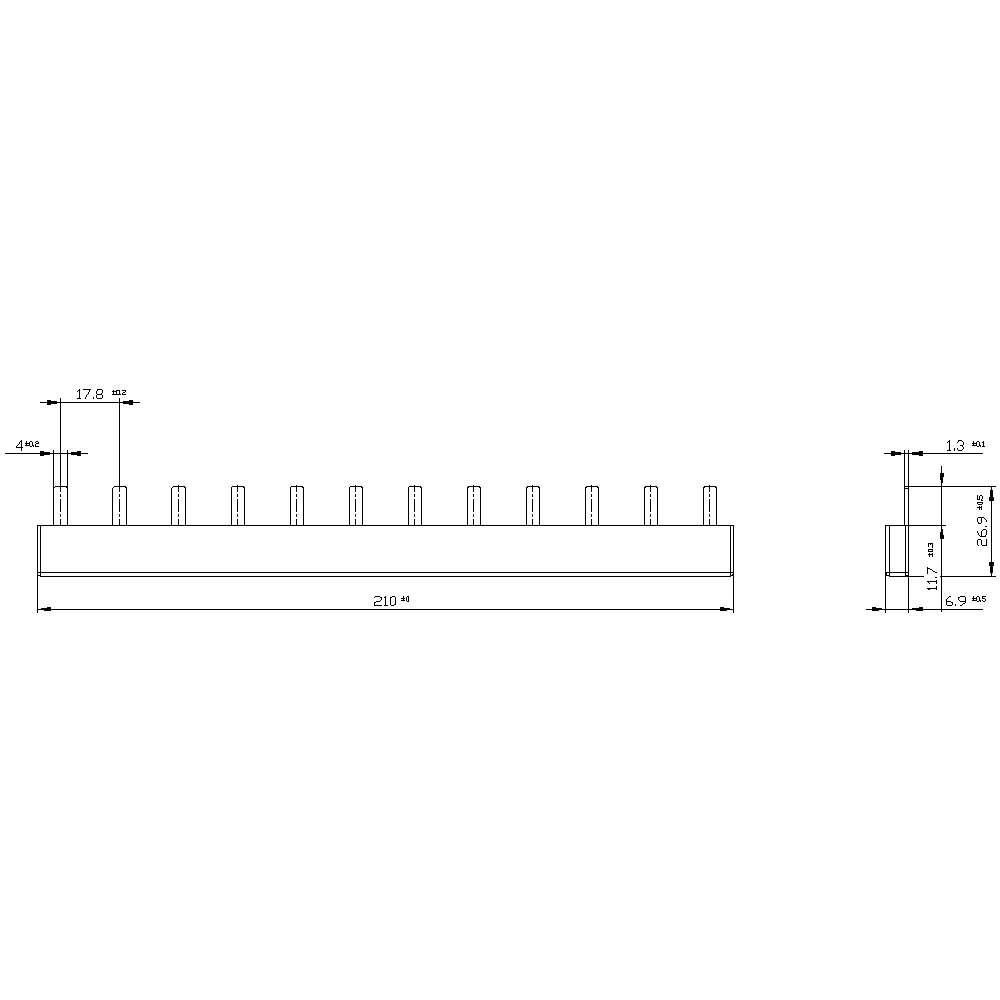

Dimensions
Width7 mm
Height15 mm
Other
colorlight grey
length210 mm
cross-section10 mm²
module width18 mm
phase number2
compatibilityfor 6 MCBs (2P/1P+N)
design of pole2P / 1P+N
product brand nameSENTRON
product designationPin busbar
suitability for useRCCB 2P N right
design of the product6x (1PH+N)
design of the phase tapL1/L2 oder L1/N
product feature insulatedYes
angle of the pin of busbar0°
number of modular width units12
type of electrical connectionPin
operational current rated value63 A
number of devices suitable for fitting6
suitability for interaction devices with N conductorYes
product feature attachable arc fault detection deviceNo
suitability for interaction devices with auxiliary switchNo
