colorlight grey

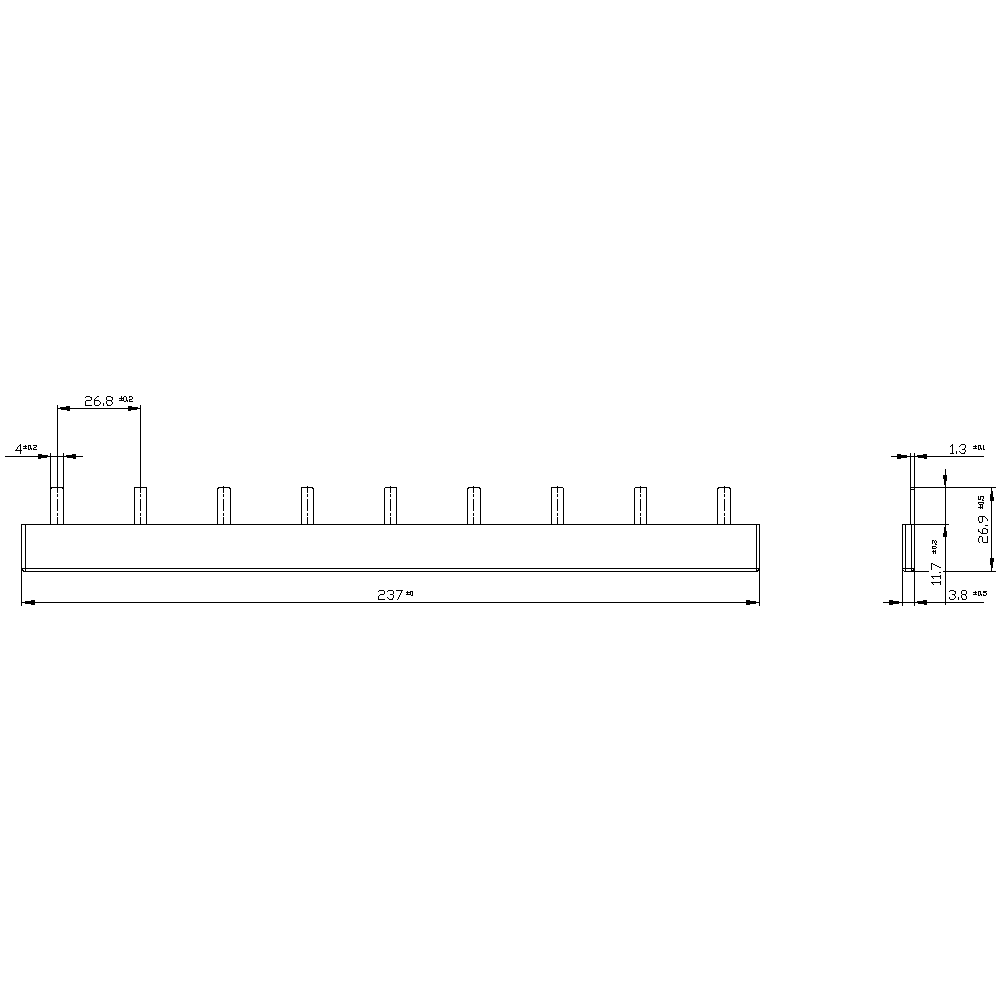

length237 mm
cross-section10 mm²
module width18 mm
phase number1
compatibilityfor 9 MCBs 1P
design of pole1 pole
product brand nameSENTRON
product designationPin busbar
design of the product9x (1PH+HS)
design of the phase tapL1/L1
product feature insulatedYes
angle of the pin of busbar0°
number of modular width units13
type of electrical connectionPin
operational current rated value63 A
number of devices suitable for fitting9
suitability for interaction devices with N conductorNo
product feature attachable arc fault detection deviceNo
suitability for interaction devices with auxiliary switchYes
