Aktif
Pin busbar
Nomor Part: 5ST3604
Kategori
Phase busbar

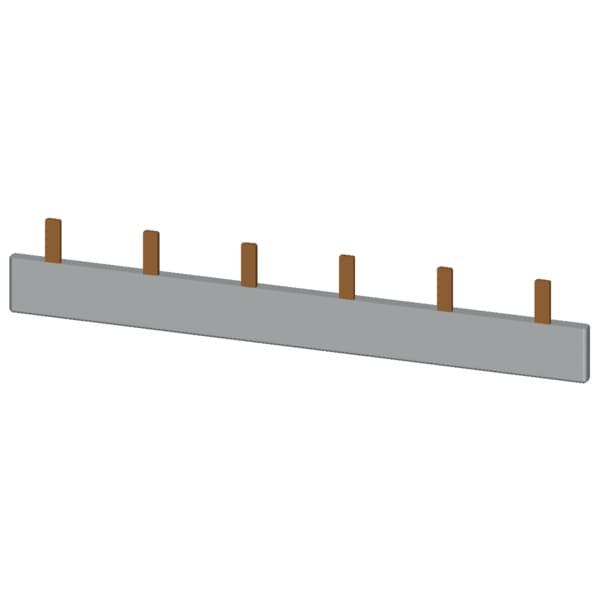

Siemens 5ST3604. Pin busbar, 10 mm2 connection: 6x (1-phase+AUX/FS) touch-safe.
Spesifikasi
Mechanical
Net Weight32 g
Dimensions
Width3 mm
Height14 mm
Other
colorlight grey
length158 mm
cross-section10 mm²
module width18 mm
phase number1
compatibilityfor 6 MCBs 1P
design of pole1 pole
product brand nameSENTRON
product designationPin busbar
design of the product6x (1PH+HS)
design of the phase tapL1/L1
product feature insulatedYes
angle of the pin of busbar0°
number of modular width units9
type of electrical connectionPin
operational current rated value63 A
number of devices suitable for fitting6
suitability for interaction devices with N conductorNo
product feature attachable arc fault detection deviceNo
suitability for interaction devices with auxiliary switchYes
