Aktif
NEOZED
Nomor Part: 5SG6202
Kategori
D0-system fuse base
Siemens 5SG6202. NEOZED, fuse base, D02, 3-pole, 63 A, Un AC: 400 V, Un DC: 250 V, for Busbar system 8US 60 mm without cover.
Spesifikasi
Mechanical
Net Weight111 g

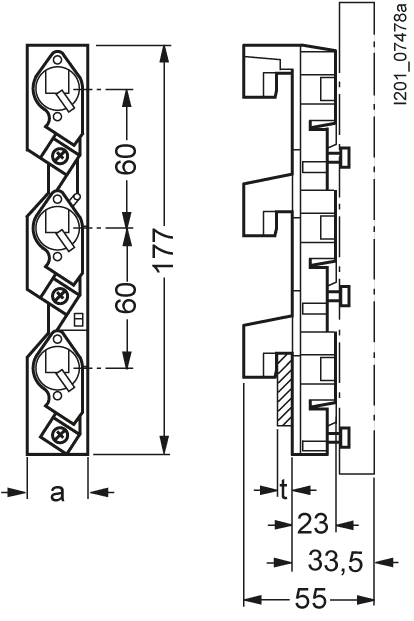

Dimensions
Width27 mm
Height200 mm
Depth33.5 mm
Other
number of poles3
product versionFor 60 mm 8US busbar system
fastening methodBusbar system
product brand nameSENTRON
design of the productNEOZED bus-mounting fuse base
material of D fuse baseplastic
product component coverNo
operating voltage rated value400 V
operational current rated value63 A
size of fuse system according to EN 60269-1D02
power loss [W] for rated value of the current at AC in hot operating state per pole3 W
