NEOZED
Nomor Part: 5SG5302-1
Kategori
D0-system fuse base

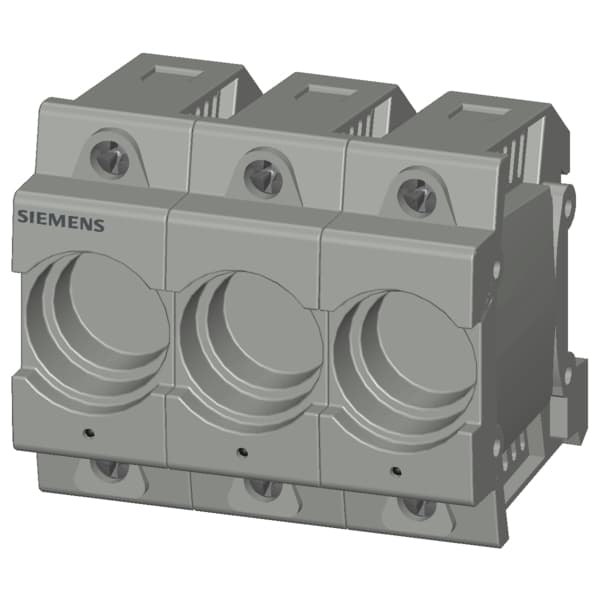

Siemens 5SG5302-1. NEOZED, fuse base, D01, 3-pole, 16 A, Un AC: 400 V, Un DC: 250 V with LED signal detector with frame terminal.
Spesifikasi
Mechanical
Net Weight188 g
Dimensions
Width81 mm
Height67 mm
Depth55 mm
Other
number of poles3
fastening methodDIN rail
product brand nameSENTRON
design of the productNEOZED fuse base installation
material of D fuse baseplastic
product component coverYes
operating voltage rated value400 V
operational current rated value16 A
size of fuse system according to EN 60269-1D01
power loss [W] for rated value of the current at AC in hot operating state per pole0.6 W
