Aktif
plug connector type 2 N-PE requirement class C
Nomor Part: 5SD7428-0
Kategori
Accessories/spare parts for surge protection power supply systems

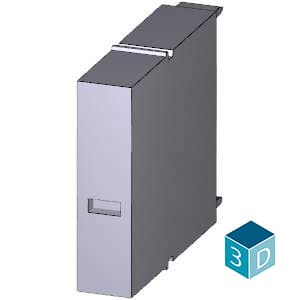

Siemens 5SD7428-0. plug connector type 2 N-PE requirement class C, Uc 260 V 1-pole, narrow design for surge arrester 5SD742...and combination surge arrester 5SD744..
Spesifikasi
Mechanical
Net Weight66 g

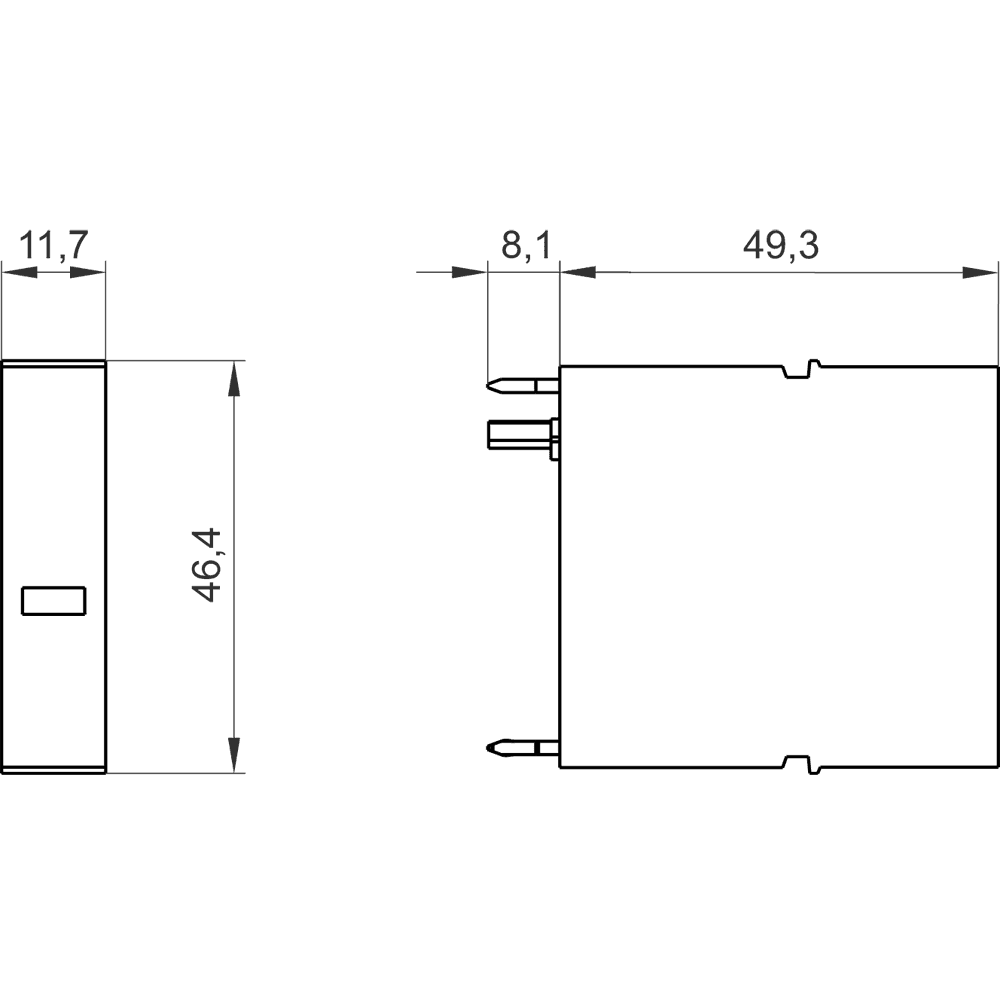

Dimensions
Width11.7 mm
Height45 mm
Depth56.4 mm
Other
accessoriesplug connector type 2, for 5SD742...
surge arrester and 5SD744... combination surge arrester
product brand nameSENTRON
product designationPlug-in part type 2
suitability for use5SD7422-0,5SD7422-1,5SD7424-0,5SD7424-1
design of the productFor surge arresters
5SD742... and combination surge arresters 5SD744...
SPD classification according to EN 61643-11 Test Class I, Type 1No
SPD classification according to EN 61643-11 Test Class II, Type 2Yes
